RAYMARINE EVOLUTION AUTOPILOTS
RAYMARINE EVOLUTION autopilots, with advanced aerospace guidance technology, detect the environment and calculate parameters to guarantee the best performance, with 9-axis precision monitoring of pitch, roll, yaw and heading. Optimal and reliable course keeping, independently from speed or water conditions.
Easy to install: EV sensor core can be installed above or below deck. Install upside-down or off the vessel's centre line. No lengthy calibration procedures to perform. No compass calibration required. Plug and play connections.
The EVOLUTION Autopilots package includes: control Head, EV-1 sensor, Autopilot Control Unit (ACU) and drive unit. The drive unit (inboard mechanical/ hydraulic or cockpit mounted) and correct ACU for your vessel is dependent on the steering system and displacement of the vessel itself.
The choice of the most suitable autopilot depends on:
1. Steering system type.
2. If it's an hydraulic system it is necessary to know the volume (cc) of the cylinder to choose the most suitable pump.
3. The boat's dimension and desplacement: remember to always take the fully laden displacement weight of your vessel into account (often 20% above the designed displacement).
|
| Package components | ||||||
|---|---|---|---|---|---|---|---|
|
| Model | Boat | Sensor EV | Power unit ACU | Rudder angle | Control unit | Actuator |
| EV-100 Power | Engine, hydraulic steering (50-150 cc cylinder volume) ** | EV-1 | 100 | not supplied as standard | p70Rs | 0,5 Hydraulic pump type | |
| Ev-100 Wheel | Sail boats, wheel drive Maximum dispacement 7500 kg * | EV-1 | 100 | not supplied as standard | p70s | Wheel actuator | |
| EV-100 Tiller | Sail boats, tiller drive Maximum displacement 6000 kg * | EV-1 | 100 | no | p70s | Tiller | |
| EV-200 Hydraulic | Engine, hydraulic steering (80-230 cc. cylinder volume) ** | EV-1 | 200 | yes | p70Rs | 1 Hydraulic pump type | |
| EV-150 Hydraulic | Engine, hydraulic steering (80-230 cc. cylinder volume) ** | EV-1 | 150 | no | p70Rs | 1 Hydraulic pump type | |
| EV-200 Linear | Sail boats, mechanical steering with cables Maximum displacement 11000 kg * | EV-1 | 200 | yes | p70s | Type 1 mechanical linear | |
* Full load displacement
** Displacement shall not apply to hydraulic steering since the actuator depends on the cylinder volume of the steering.

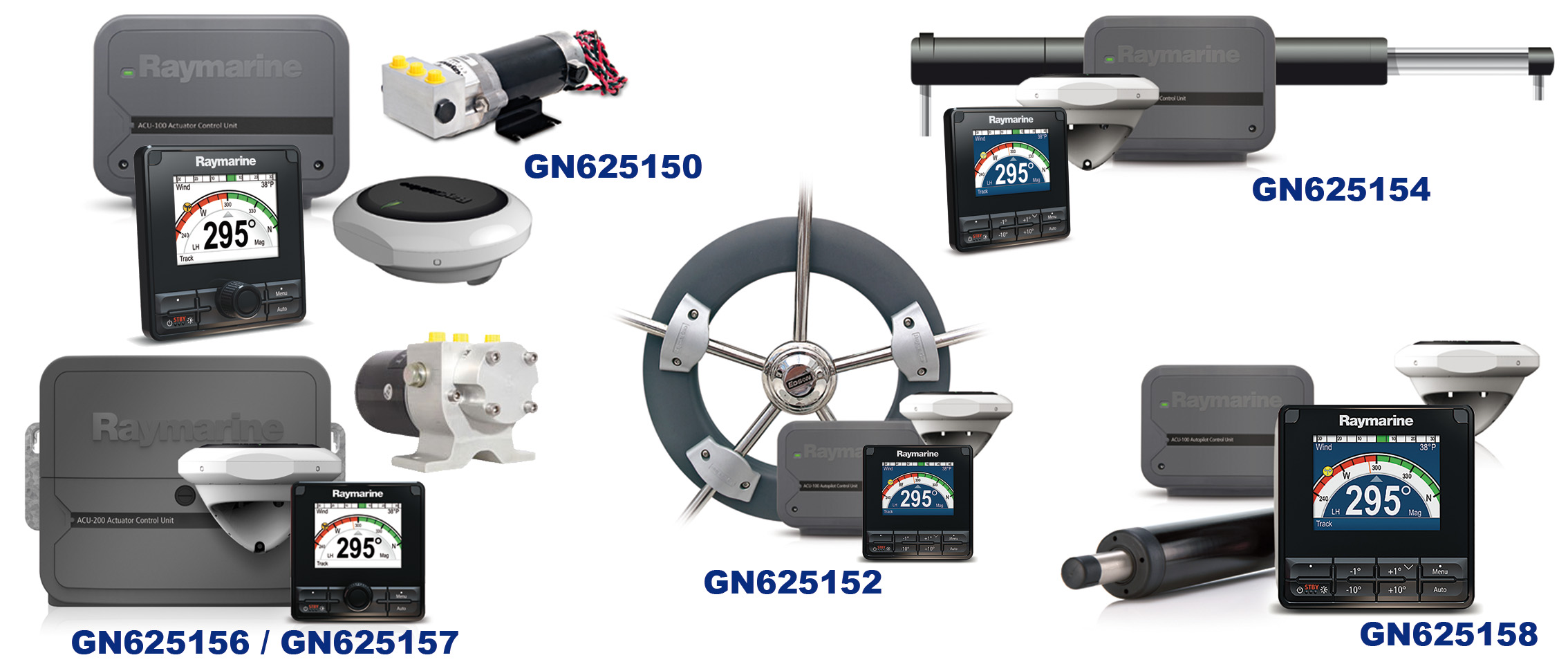

| Code | Description |
|---|---|
| EV-100 POWER c/p70Rs AUTOPILOT PACK, ACU100 and hydraulic pump type 0,5 | |
| EV-100 WHEEL c/p70s AUTOPILOT PACK, ACU100 and wheel actuator | |
| EV-100 TILLER c/p70s AUTOPILOT PACK, ACU100 and tiller actuator | |
| EV-200 HYDR. c/p70Rs AUTOPILOT PACK, ACU200 and hydraulic pump type 1 | |
| EV-150 HYDR. c/p70Rs, ACU150 AUTOPILOT PACK and type 1 hydraulic pump | |
| EV-200 LINEAR. c/p70s AUTOPILOT PACK, ACU200 and mechanical linear actuator type 1 |
