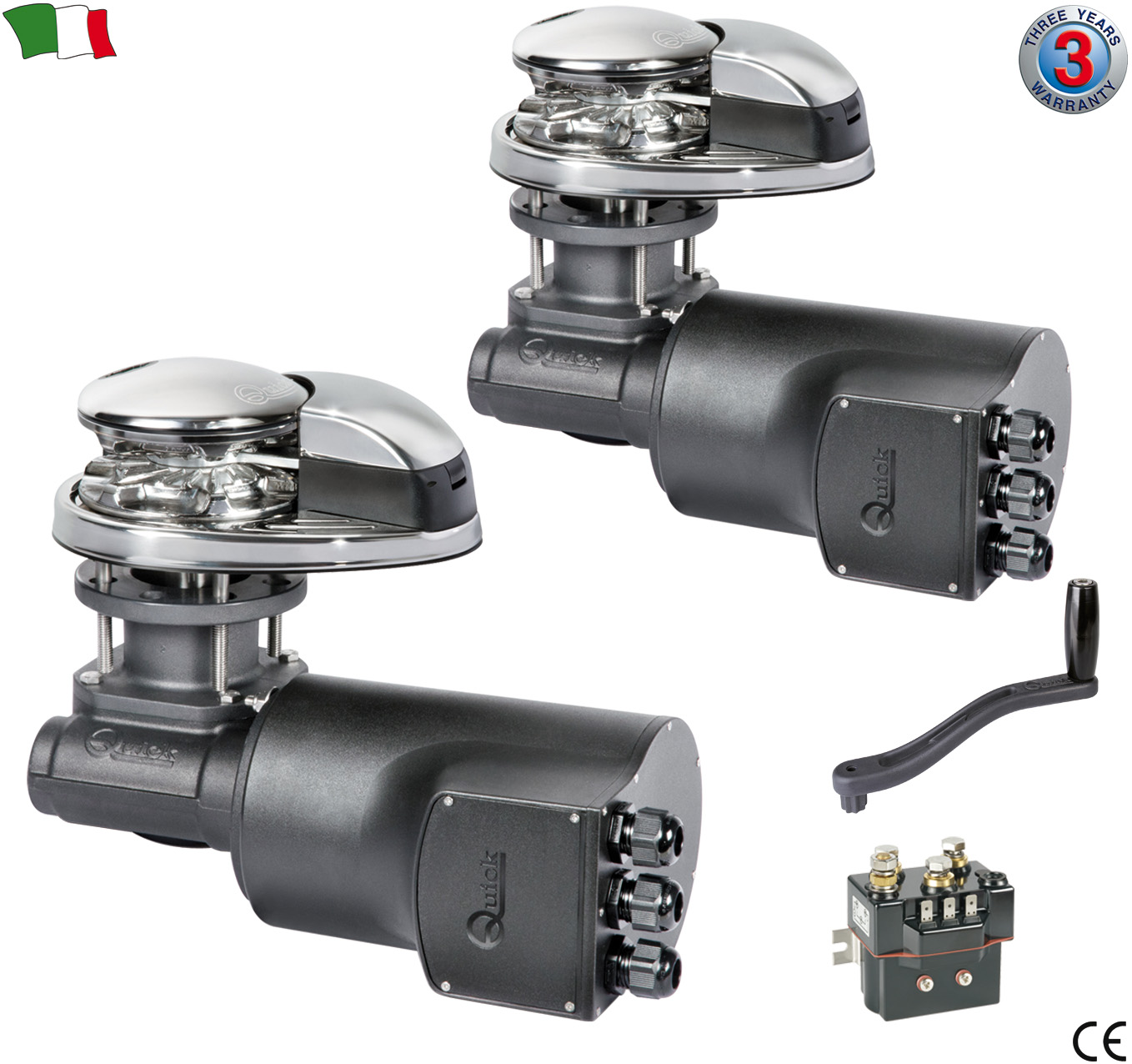

VERTICAL "PRINCE DP2" 700-1000 W WINDLASSES

  • windlass
036450 dis_tec_036450

Vertical "PRINCE DP2" with S.STEEL AISI 316 base.

Features:
• Rope and chain on a single gypsy
Manual chain free-fall system.
• Inspection hatch
• Integrated magnete and sensor for chain counter
• Supplied with pression lever
• Watertight IP67
• Anodised aluminium adaptor

Complete with: contractor unit and aluminium handle, excluding control board (optional our items 036609 - 036611).

Model

Watt

Volts

Consumption

Amp

Ø

chain

mm

Ø

rope

mm

Working load

Kg

Working load

Max Kg

Deck thickness

mm

Weight

Kg

Boat

m

Case

contactor/reversing contactor

Switch

hydraulic magnetic circuit breaker

036450

Without drum

700

12

95

6

12

100

300

25÷50

15,6

7>10

036601

036625

036451

Without drum

700

12

95

8

12

100

300

25÷50

15,6

7>10

036601

036625

036501

Without drum

1.000

12

130

8

12

140

420

25÷50

16,7

10>13

036601

036628
