GARMIN 722XS - 922XS - 1222XSV MULTI-TOUCH COMBONEW

SYGMAP722XS

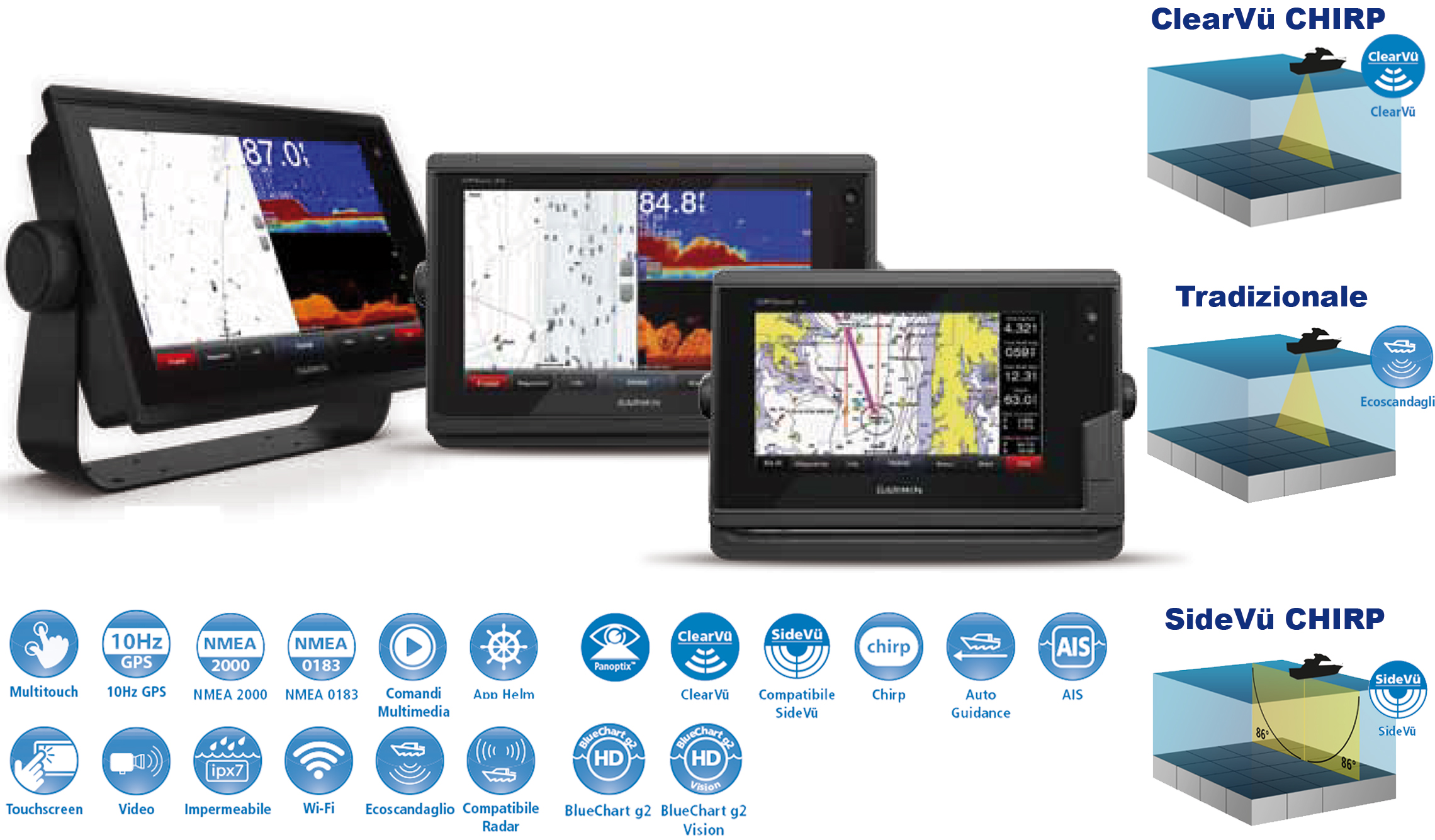

GPSMAP cartographic Fishfinder/Chartplotter with Multi-Touch color display, high sensitivity internal antenna, world basemap, wireless connection through Wi-Fi or Bluetooth with the possibility to transfer routes with BlueChart Mobile (optional) in wireless mode for iPhone and iPad, Virb action-cams, and use Garmin Apps. NMEA 2000 and NMEA 0183 interfaces, sonar recording function. External black-box needed for the SideVü vision (optional).
Supplied with CHIRP ClearVü (435-475, 800-840 kHz) ALL-IN-ONE GT20-TM depth/temp. transom mount transducer (77/200 kHz), micro SD card double slot, mounting bracket, power and data cable, protective cover, Italian and multilingual software, user's manual.

Gps/GLONASS 10 Hz integrated receiver.

Supports Garmin Marine Network, Radar Garmin, Panoptix™, autopilot, videocameras, AIS, DSC, GSD, GCV, Quatix and compatible Fusion audio systems.

Depth up to:
228 m approx* (ClearVü 435/475 kHz).
579 m approx* (with transducer 77/200 kHz).

*Maximum depth reachable depends on sea bottom, on water physical-chemical properties and other factors.

Optional Garmin BlueChart G2 HD or G2 Vision HD MicroSD/SD cartography.

Code

Description

SYGMAP722XS

GARMIN GPSMAP 722xs Fishfinder/Chartplotter (7" WVGA 800x480 pixel screen) with integrated CHIRP module and ClearVü CHIRP (435-475, 800-840 kHz) ALL-IN-ONE GT20-TM depth/temp. transom mount transd. (77/200 kHz)

SYGMAP722XS/V12R

GARMIN GPSMAP 722xs Fishfinder/Chartplotter (7" WVGA 800x480 pixel screen) with integrated CHIRP module and ALL-IN-ONE GT20-TM depth/temp. transom mount transd. and G2 VISION HD Regular West Coast (VEU012R) cartography

SYGMAP722XS/V14R

GARMIN GPSMAP 722xs Fishfinder/Chartplotter (7" WVGA 800x480 pixel screen) with integrated CHIRP module and ALL-IN-ONE GT20-TM depth/temp. transom mount transd. and G2 VISION HD Regular Adriatic Sea (VEU014R) cartography

SYGMAP722XS/S

GARMIN GPSMAP 722xs Fishfinder/Chartplotter (7" WXGA 800x480 pixel screen) with integrated CHIRP module display only

SYGMAP922XS

GARMIN GPSMAP 922xs Fishfinder/Chartplotter (9" WVGA 800x480 pixel screen) with integrated CHIRP module and ClearVü CHIRP (435-475, 800-840 kHz) ALL-IN-ONE GT20-TM depth/temp. transom mount transd. (77/200 kHz)

SYGMAP922XS/V12R

GARMIN GPSMAP 922xs Fishfinder/Chartplotter (9" WVGA 800x480 pixel screen) with integrated CHIRP module and ALL-IN-ONE GT20-TM depth/temp. transom mount transd. and G2 VISION HD Regular West Coast (VEU012R) cartography

SYGMAP922XS/V14R

GARMIN GPSMAP 922xs Fishfinder/Chartplotter (9" WVGA 800x480 pixel screen) with integrated CHIRP module and ALL-IN-ONE GT20-TM depth/temp. transom mount transd. and G2 VISION HD Regular Adriatic Sea (VEU014R) cartography

SYGMAP922XS/S

GARMIN GPSMAP 922xs Fishfinder/Chartplotter (9" WXGA 800x480 pixel screen) with integrated CHIRP module display only

SYGMAP1222TXSV/S

GARMIN GPSMAP 1222xsv Fishfinder/Chartplotter (12" WXGA 1280X800 pixel screen) with integrated CHIRP module display only

Spare parts

SYG12550

Power cable for GPSMAP 722 - 722xs - 922 - 922xs

SYG12152-10

Power cable for GPSMAP 1222 Touch - 1222xs Touch

SYG12545

Mounting bracket for GPSMAP 722 - 722xs

SYG12545-01

Mounting bracket for GPSMAP 922 - 922xs

SYG12163-03

Mounting bracket for GPSMAP 1222 Touch - 1222 xsv Touch

SYG12547

Protective cover for GPSMAP 722 - 722xs

SYG12547-01

Protective cover for GPSMAP 922 - 922xs

SYG12166-03

Protective cover for GPSMAP 1222 Touch - 1222xsv Touch
