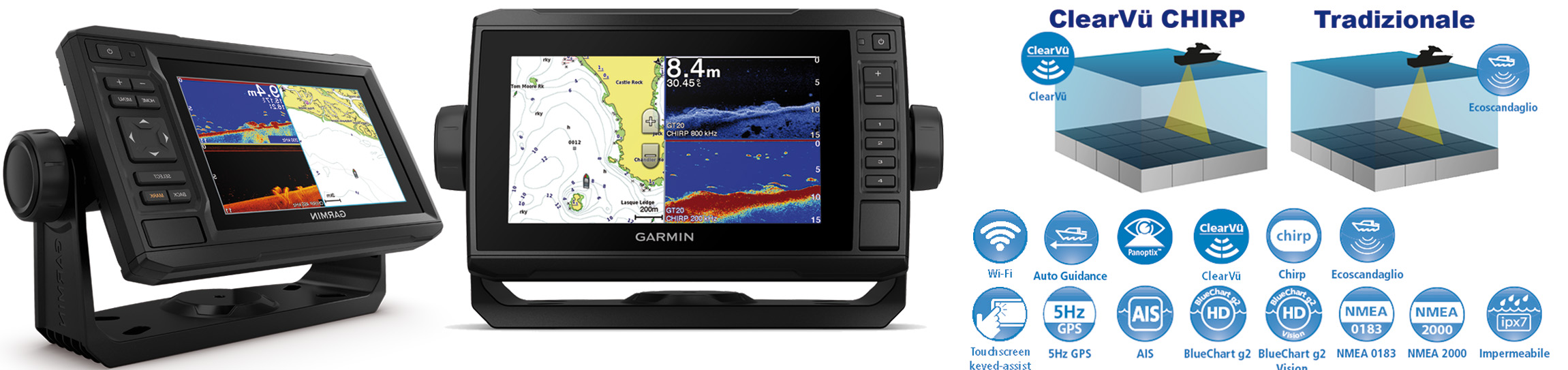

GARMIN ECHOMAP UHD 62CV - 72CV COMBONEW

SYGMAP62CV

ECHOMAP UHD cartographic colour Fishfinder/Chartplotter (WVGA 480 x 800 pixel), equipped with traditional technology and CHIRP to analize the seabed, show the presence of fish below the boat in real time and mark the spots where the fish are biting so you can easily return there. High-Definition ClearVü technology provides crisp images of structure. Equipped with integrated Gps/GLONASS 5 Hz high sensitivity antenna, tide tables, NMEA 2000 and NMEA 0183 interface.
More over, thanks to its Quickdraw Contours, it allows to track and memorize in total autonomy and in real time up to 1000 km² of HD bathymetrics every 30 cm; these new datas are readily available and can be shared for free with friends and fellow fishermen. ECHOMAP UHD are also equipped with Wi-Fi® to use the ActiveCaptain™ free app, which lets you connect your gps to the mobile network and access a new world of content, putting to full use your Garmin Marine instrumentation installed on board. Complete with transom mount GT24UHD-TM transducer CHIRP High Wide (150-240 kHz) - UHD ClearVü CHIRP 800 kHz (760-880 kHz) 800 kHz (790-850 kHz), 1000 kHz (940-1100) 500 W which combines HD-ID™ traditional fishfinder's technology with the one of scanning fishfinder ClearVü/SideVü for an HD view of objects, structures and fishes; max power 4000 W (peak-to-peak), 500 W RMS, slot micro SD card, mounting bracket, power and data cable, protective cover, italian and multilingual software.

Compatible with AIS, DSC, Fusion and Panoptix™ (only ECHOMAP UHD 72cv model).

Depth up to:
60 m approx* (ClearVü UHD).
243 m approx* (with CHIRP traditional transducer).

*Maximum depth reachable depends on sea bottom, on water physical-chemical properties and other factors.

Optional Garmin BlueChart G3 or G3 Vision MicroSD/SD cartography.

Code

Description

SYGMAP62CV

GARMIN ECHOMAP UHD 62cv Fishfinder/Chartplotter (6,2" display) with transom mount GT24UHD-TM CHIRP ClearVü depth/temp. transducer 150/240 – 760/880 kHz

SYGMAP62CV/S

GARMIN ECHOMAP UHD 62cv Fishfinder/Chartplotter (6,2" screen) display only

SYGMAP72CV

GARMIN ECHOMAP UHD 72cv Fishfinder/Chartplotter (7" screen) with transom mount GT24UHD-TM CHIRP ClearVü transducer with depth/temp. 150/240 – 760/880 kHz

SYGMAP72CV/S

GARMIN ECHOMAP UHD 72cv Fishfinder/Chartplotter (7" screen) display only

Spare parts

SYG12199-04

Power/data cable for ECHOMAP UHD 62cv

SYG12445

Power/data cable for ECHOMAP UHD 72cv/72sv/92sv

SYG12671-03

Mounting bracket for ECHOMAP UHD 62cv

SYG12672-03

Mounting bracket for ECHOMAP UHD 72cv

SYG12671

Protective cover for ECHOMAP UHD 62cv

SYG12672

Protective cover for ECHOMAP UHD 72cv/72sv

SYG12908

Transom mount ClearVü GT24UHD-TM CHIRP transducer (supplied as standard)
