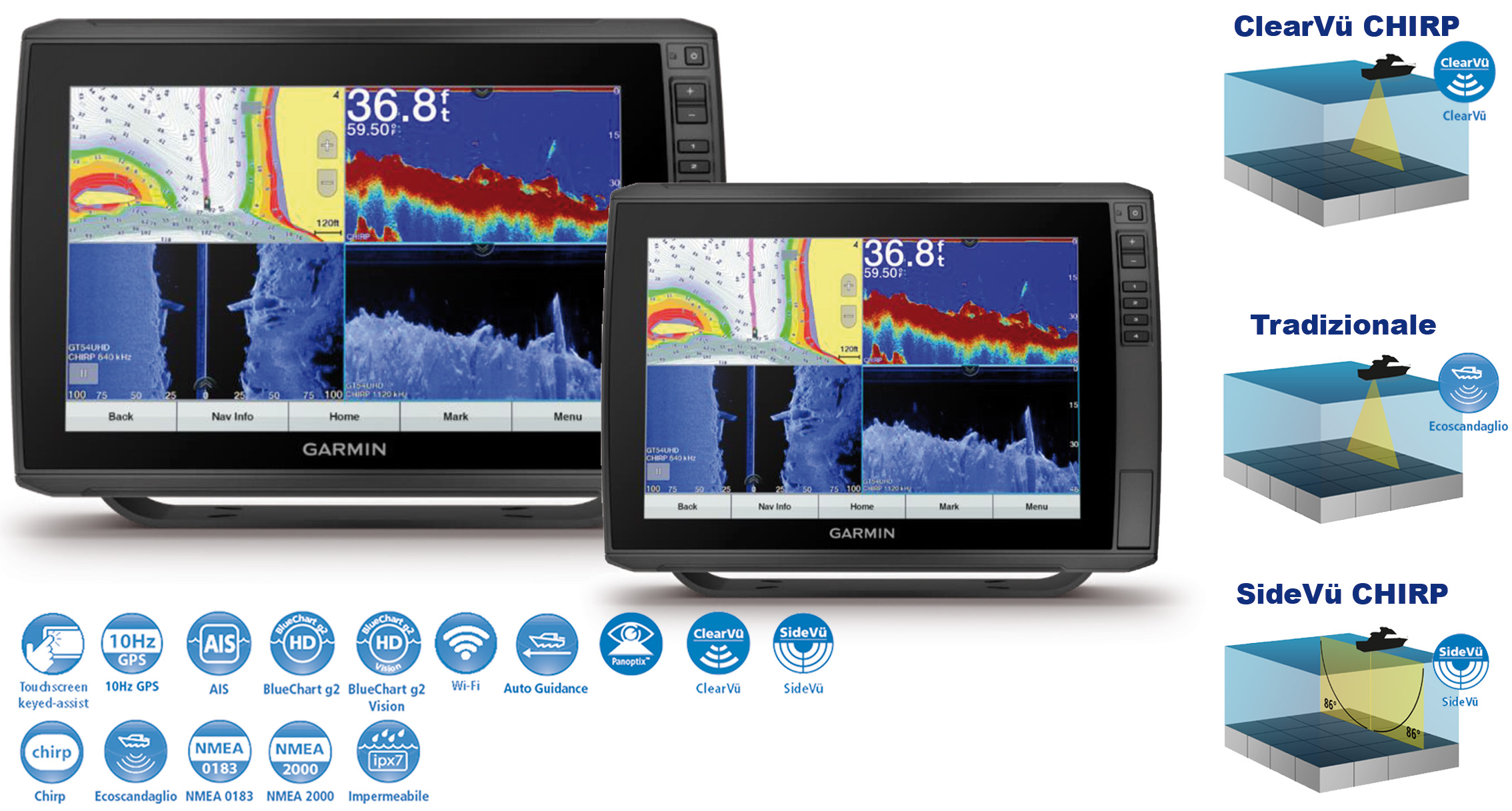

GARMIN ECHOMAP ULTRA 102SV - 122SV COMBONEW

SYGMAP102SV

ECHOMAP ULTRA color cartographic Fishfinder/Chartplotter (WVGA 1280x800 pixel), equipped with traditional technology and CHIRP, which allows to analize the seabed, shows the presence of fish below the boat in real time and marks the spots where the fish are biting so you can easily return there. SideVü technology shows what is happening to the sides of your boat, an excellent way of finding structure and fish. Supports the Panoptix system including the innovative Panoptix LiveScope LVS12 latest generation transducer. Equipped with integrated Gps/GLONASS 10 Hz high sensitivity antenna, tide tables, NMEA 2000 interface.
Moreover, thanks to its Quickdraw Contours, it allows to track and memorize in total autonomy and in real time up to 1000 km² of HD bathymetric charts every 30 cm; these new data is readily available and can be shared for free with friends and fellow fishermen. ECHOMAP ULTRA is also equipped with Wi-Fi® to use the ActiveCaptain™ free app, which lets you connect your gps to the mobile network and access a new world of content, putting to full use your Garmin Marine instrumentation installed on board. Equipped with all-in-one GT54UHD-TM transom mount transducer equipped with ClearVü technology and SideVü UHD with high definition and traditional CHIRP fishfinder function in a single transducer, 2 micro SD card slot, mounting bracket, power and data cable, protective cover, Italian and multilingual software.

Compatible with AIS, DSC, Panoptix™ and Fusion systems.

Depth up to:
243 m approx* (with traditional CHIRP).
60 m approx* (ClearVü UHD) ).
38 m approx* for each side; 76 m total, with maximum depth of 9 m (high definition SideVü UHD).
150 m approx* for each side (SideVü).

* Maximum depth reachable depends on type of seabed, water physical-chemical properties and other factors.

Optional Garmin BlueChart G3 or G3 Vision MicroSD/SD cartography.

Code

Description

SYGMAP102SV

GARMIN ECHOMAP ULTRA 102SV Fishfinder/Chartplotter (10" screen) with ALL-IN-ONE GT54UHD-TM depth/temp. transom mount transducer (CHIRP 150/240 Khz) ClearVü (760-880 kHz) and SideVü (425-485 – UHD 1.080-1.230 kHz)

SYGMAP102SV/S

GARMIN ECHOMAP ULTRA 102SV Fishfinder/Chartplotter (10" screen) display only

SYGMAP122SV

GARMIN ECHOMAP ULTRA 122SV Fishfinder/Chartplotter (12" screen) with ALL-IN-ONE GT54UHD-TM depth/temp. transom mount transducer (CHIRP 150/240 Khz) ClearVü (760-880 kHz) and SideVü (425-485 – UHD 1.080-1.230 kHz)

SYGMAP122SV/S

GARMIN ECHOMAP ULTRA 122SV Fishfinder/Chartplotter (12" screen) display only

Spare parts

SYG12938

Power/data cable for ECHOMAP ULTRA 102sv - 122sv

SYG12841

ECHOMAP ULTRA 102sv mounting bracket

SYG12842

ECHOMAP ULTRA 122sv mounting bracket

SYG12841-01

Protective cover for ECHOMAP ULTRA 102sv

SYG12842-01

Protective cover for ECHOMAP ULTRA 122sv

SYG12909

ClearVü SideVü GT54UHD-TM transom mount transducer (supplied as standard)
