LOWRANCE REVEAL CHIRP COMBONEW

GN622874

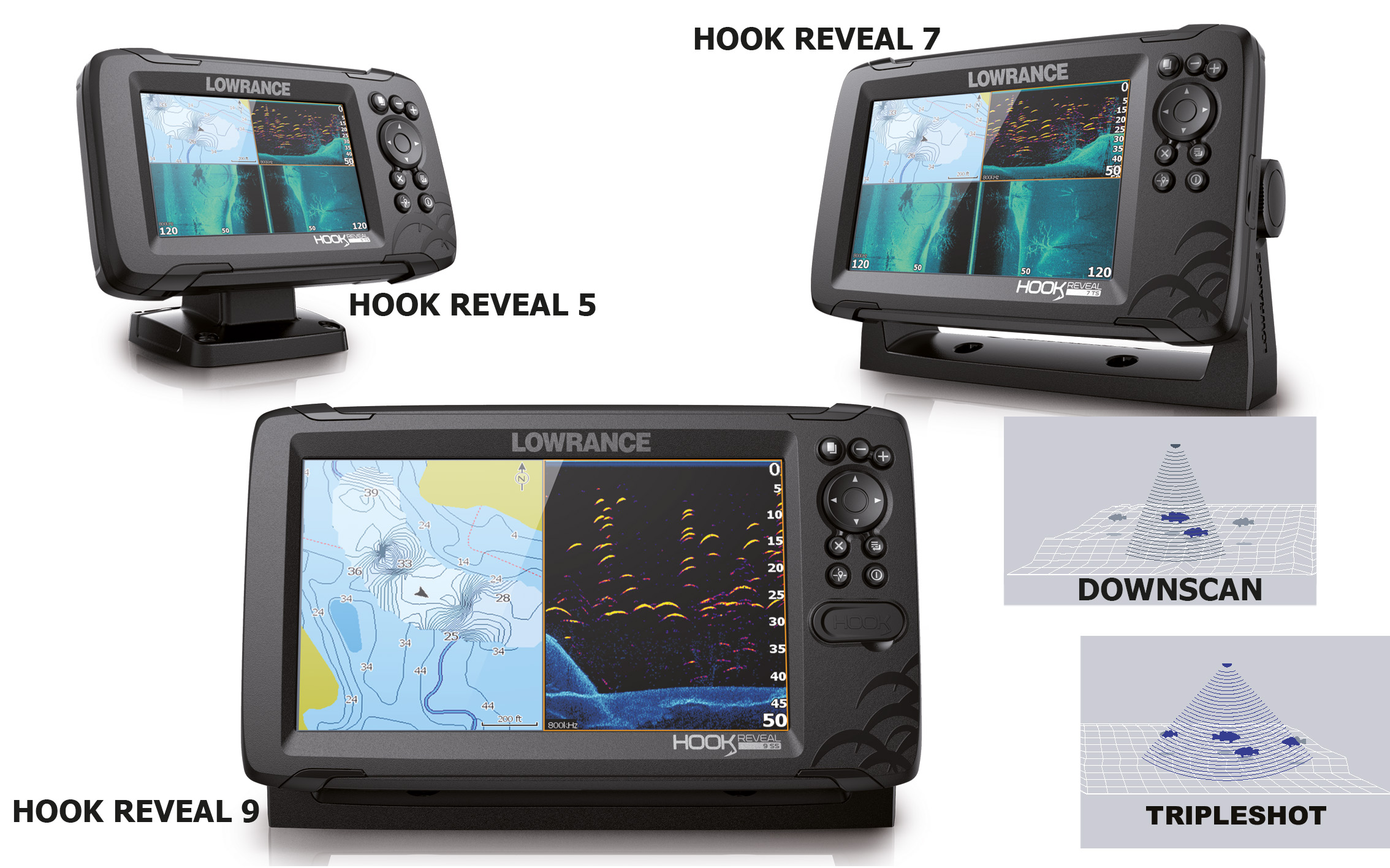

REVEAL CHIRP Fishfinder/Chartplotter (white LED color screen, sun readable with SolarMax + technology, 800x480 pixel) with high sensitivity internal GPS antenna. Available in 3 versions
● Reveal HDI transducer (traditional skimmer 50/200 kHz, 200W RMS and DownScan Imaging ™ 455/800 kHz, 500W RMS);
● Reveal 2-in-1 transducer (traditional 83/200 kHz, 200W RMS and DownScan Imaging ™ 455/800 kHz, 500W RMS)
● TripleShot 3-in-1 transducer (traditional skimmer 200 kHz, 200W RMS, SideScan and DownScan Imaging ™ 455/800 kHz, 500W RMS)
both self-adjusting and wide-angle, broadband, providing twice the coverage of most fishfinders.
FishReveal function makes it easier to find and identify fish, combining the proven performance of the fish in a single screen. Lowrance CHIRP sonar and high resolution images of DownScan Imaging's fish holding facility.
Targets light up on display. Complete with micro SD card slot, mounting bracket, power cable, Italian and multilingual software.

LOWRANCE REVEAL 5 and 7 WITH HDI TRANSDUCER depth up to:
50 m approx* (DownScan 455/800 kHz).
200 m approx* (with 83/200 kHz transducer).
300 m approx* (with 50/200 kHz transducer).
LOWRANCE REVEAL 7 and 9 WITH TRIPLESHOT TRANSDUCERdepth up to:
50 m approx* (DownScan 455/800 kHz).
150 m approx* (with 200 kHz transducer).
300 m approx* (with 50/200 kHz transducer).

* depth capacity depends on sea bottom and other water conditions.

Optional Navionics+ - C-MAP DISCOVER SD cartography.

Code

Description

GN622874

LOWRANCE REVEAL 5 Fishfinder/Chartplotter (5" display) with transom mount Reveal transducer (Skimmer HDI 50/200 kHz and DownScan Imaging 455/800 kHz)

GN622875

LOWRANCE REVEAL 5 Fishfinder/Chartplotter (5" display) with transom mount Reveal transducer (Skimmer HDI 83/200 kHz and DownScan Imaging 455/800 kHz)

GN622877

LOWRANCE REVEAL 7 Fishfinder/Chartplotter (7" display) with transom mount Reveal transducer (Skimmer HDI 83/200 kHz and DownScan Imaging 455/800 kHz)

GN622900

LOWRANCE REVEAL 7 Fishfinder/Chartplotter (7" display) with transom mount Reveal transducer (Skimmer HDI 50/200 kHz and DownScan Imaging 455/800 kHz)

GN622878

LOWRANCE REVEAL 7 Fishfinder/Chartplotter (7" display) with transom mount TripleShot transducer (Skimmer 200 kHz, SideScan and DownScan Imaging 455/800 kHz)

GN622902

LOWRANCE REVEAL 9 Fishfinder/Chartplotter (9" display) with transom mount Reveal transducer (Skimmer HDI 50/200 kHz and DownScan Imaging 455/800 kHz)

GN622880

LOWRANCE REVEAL 9 Fishfinder/Chartplotter (9" display) with transom mount TripleShot transducer (Skimmer 200 kHz, SideScan and DownScan Imaging 455/800 kHz)

Spare parts

GN623031/2

Power cable for HOOK REVEAL (5 - 7 - 9) series

GN623022/2

Mounting bracket for HOOK REVEAL 5

GN623027

Mounting bracket for HOOK REVEAL 7

GN623028/2

Mounting bracket for HOOK REVEAL 9

GN623011/2

Protective cover for HOOK REVEAL 5

GN623012/2

Protective cover for HOOK REVEAL 7

GN623013/2

Protective cover for HOOK REVEAL 9

GN622977

Transom mount Reveal Skimmer HDI 50/200 kHz and DownScan Imaging 455/800 kHz transducer (supplied as standard with GN622874)

GN622978

Transom mount Reveal Skimmer HDI 83/200 kHz and DownScan Imaging 455/800 kHz transducer (supplied as standard with GN622875/77)

GN622972

Transom mount TripleShot Skimmer 200 kHz, SideScan and DownScan Imaging 455/800 kHz transducer (supplied as standard with GN622878/80)
