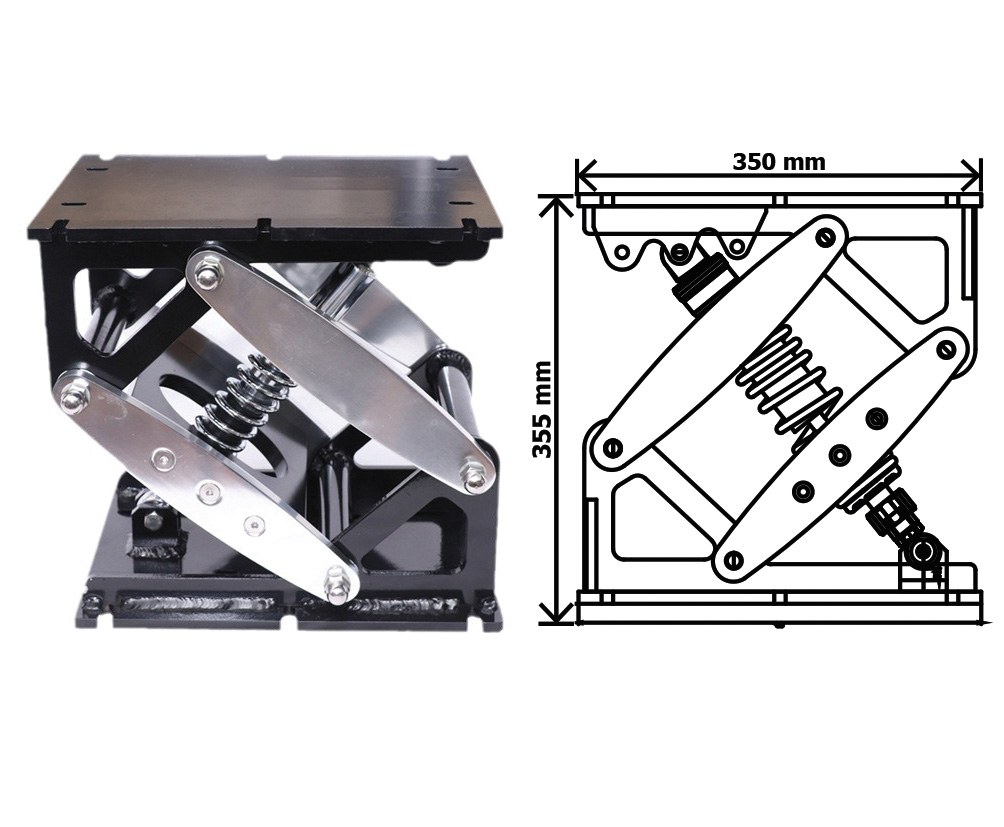

ADJUSTABLE SUSPENSION SYSTEM FOR SEATSNEW

  • stuffed seats
125990

Technical features

Width

350 mm

Depth

270 mm

1st level height

from 325 to 335 mm

2nd level height

from 345 to 355 mm

3rd level height

from 365 to 375 mm

125990

Robust structure made of anodized aluminum alloy, with a nylon gasket and STAINLESS STEEL fasteners, ensuring high strength, durability and reliability.

The height is adjustable to 3 positions, allowing the system to be easily adapted to different usage requirements, with an adjustable lift range of up to 40 mm.

The efficient shock absorption system, featuring a spring strut, provides approximately 80 mm of travel, ensuring smoother, progressive and controlled movement.

The spring strut offers a nominal load capacity ranging from 60 to 150 kg, ensuring high versatility and adaptability to different operating conditions.

Despite the robust construction, the system has a low net weight of approximately 13,9 kg, making it easier to handle and install.
