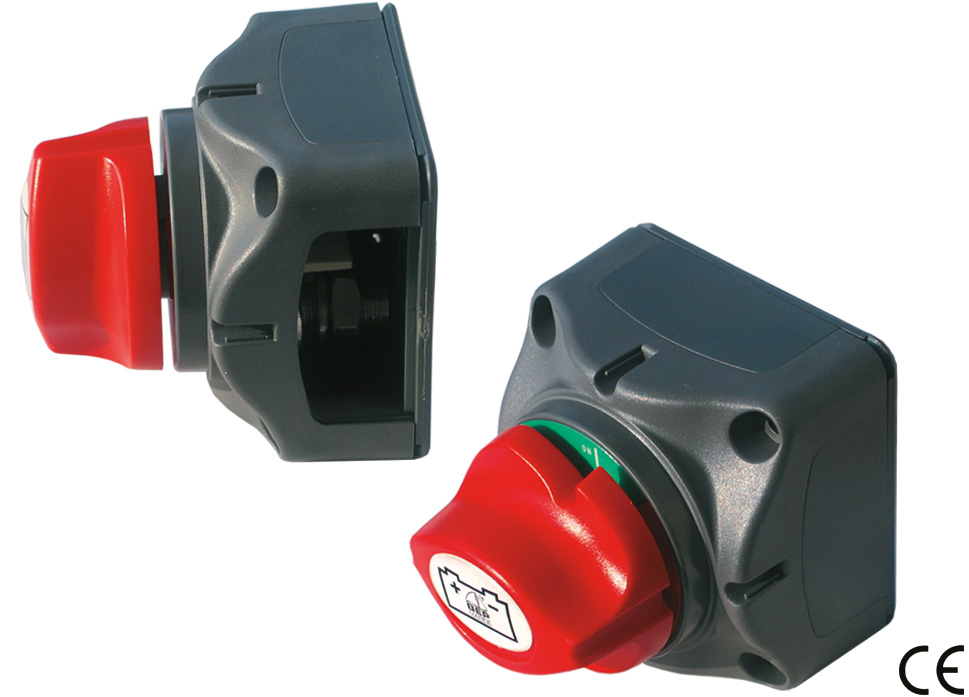

"BEP MARINE" BATTERY DISCONNECTOR

  • battery disconnector
630170

Technical features

Max continuous capacity

275 Amp

Intermittent capacity

455 Amp

Max short endurance capacity

1250 Amp for 10 sec.

Voltage

max 48 Vdc

Dimensions

69x69x75 mm

Contact bolts diameter

9,8 mm

Terminals

2

Operation

ON / OFF

630170

The feature that makes it unique is the patented system that allows to be locked together with other switches.The key is locked in ON/OFF position but can be removed by switching to an anticlockwise 45° position. The rear terminals are protected with a demountable cover according to the ABYC requirements (anti-explosion). It can flush mounted by cutting a 52,4 mm hole.

Pins and nuts are made of tin-plated copper.
