LED SWITCH WITH INTERCHANGEABLE TOGGLE
- switches
Switches with interchangeable toggle WATERPROOF IP56 with DOUBLE LED LIGHTING.
Supplied without TOGGLE TO BE ORDERED A PART.
For a perfect finishing forming a single panel with the switches, plastic bezels are available our codes 630311/12/13.
| Technical features | |
|---|---|
| Max capacity | 20 A at 12 V 12 A at 24 V |
| Hole | 21,5 x 36,8 mm |
2-LED ROCKER SWITCH WITHOUT TOGGLE
One LED illuminates the user’s symbol to which the switch is connected for an easy identification and the other illuminates an appropiate gap under the symbol to show when the use is activated.
| | Function | N° terminals | Suggested for |
|---|---|---|---|
| ON - OFF | 3 | --- | |
| ON - OFF - ON | 4 | Bilge pumps (automatic/manual) Navigation light + masthead | |
| (ON)* - OFF *With return spring | 3 | Horns, WC | |
| (ON)* - OFF - (ON)* *With return spring | 4 | Hudraulic gangways, windlasses, flaps | |
| (ON)* - OFF - (ON)* *With return spring | 6 bipolar | Hydraulic gangways, windlasses, flaps, trim tabs |

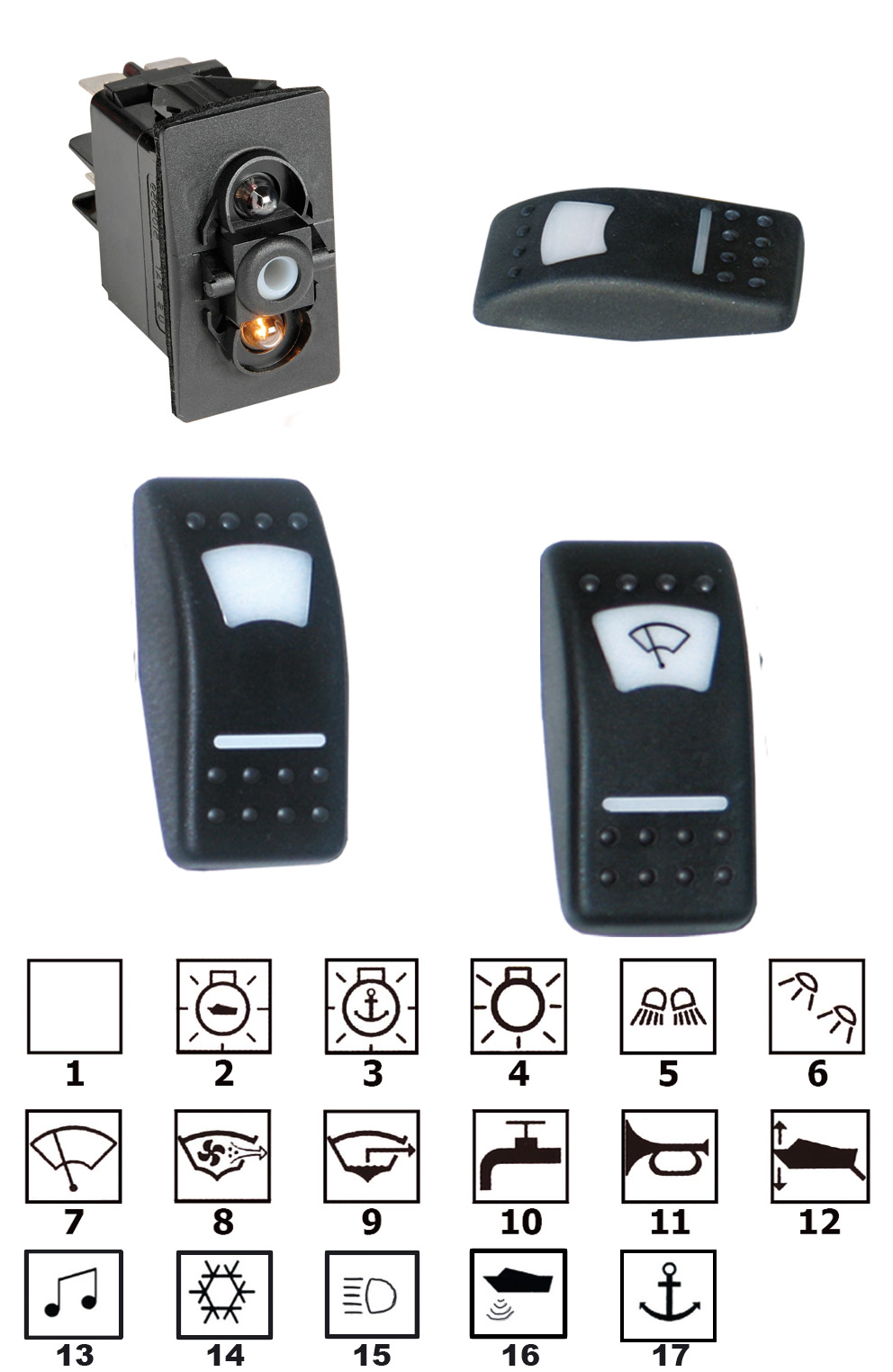

2-LED TOGGLES FOR ROCKER SWITCHES
| | Toggle description | | | Toggle description |
|---|---|---|---|---|
| 1 - Neutral for 2-LED switch | | 10 - Autoclave | ||
| 2 - Navigation lights | | 11 - Horn | ||
| 3 - Anchor lights | | 12 - Flap | ||
| 4 - Cabin | | 13 - Stereo | ||
| 5 - Cockpit-Platform-Deck | | 14 - Refrigerator | ||
| 6 - Courtesy lights - roll bar | | 15 - Spotlight | ||
| 7 - Windshield wiper | | 16 - Fishfinder | ||
| 8 - Vacuum fan | | 17 - Anchorage | ||
| 9 - Bilge pumps | |
| |
