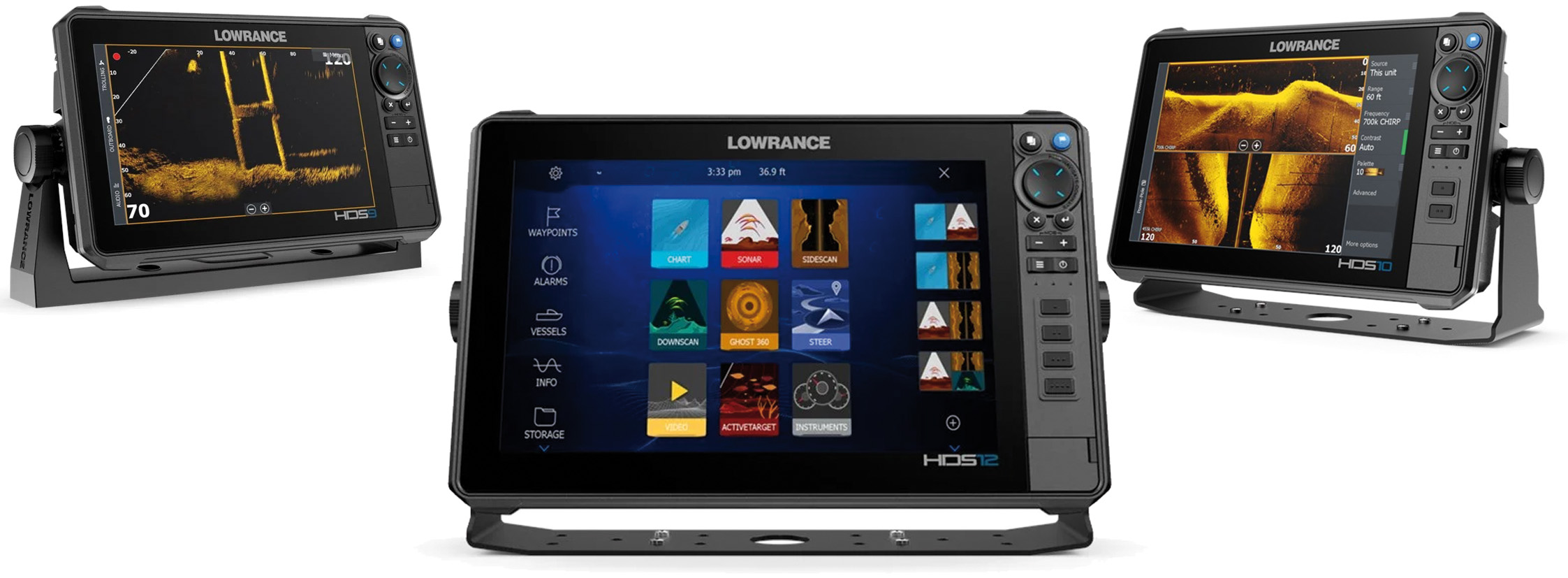

LOWRANCE HDS PRO COMBONEW
The new HDS PRO Full Multi-touch fishfinder/chartplotter range is an evolution of the already popular HDS LIVE series. With integrated support for the new 1.2 MHz HD ultra-high definition Active Imaging™ and the new ActiveTarget® 2 Live high-resolution sonar (optional), you'll get an even smoother and more accurate picture, offering a complete real-time view in Forward, Down and Scout views. *SideScan Fish Reveal requires the S3100 sonar module and a compatible transducer.
Main features:
• SOLARMAX™ IPS HD DISPLAY with touchscreen viewable at extreme angles and through polarized lenses.
• SUPERIOR CONNECTIVITY: support for NMEA 2000®, Wireless and Bluetooth
• SIMPLE CONTROLS large programmable keys for 10", 12" & 16" sizes
• NEW OVERLAYS: Support for ActiveTarget™ Scout and Ghost® 360 chart overlays
• ULTIMATE FISHING SYSTEM COMPATIBILITY Bow-to-stern control of Power-Pole® anchors, Ghost®, and more.
• C-MAP® GENESIS LIVE for a real-time mapping whereby the unit creates a cartography overlay of depth contours based on active sonar soundings.
9", 10", 12" and 16" versions available, they are supplied with mounting bracket, power cable, preloaded worldwide base map, Italian and multilingual software, user's manual.
Compatible with HALO radar - autopilot (NAC1 and NAC2), NMEA 2000®, Lowrance fuel flow sensors and with the SiriusXM® Weather/Audio system to monitor the evolution of weather conditions and listen to your favorite tunes. VHF and AIS integration.
Depth up to:
90 m approx* (DownScan 455/800 kHz).
300 m approx* (with transducer 83/200 kHz).
450 m approx* (with transducer 50/200 kHz).
750 m approx* (with thru hull 1 kW transducer).
* depth capacity depends on sea bottom and other water conditions.
Optional Navionics+ - Platinum+ - C-MAP REVEAL and DISCOVER SD cartography.
| Code | Description |
|---|---|
| LOWRANCE HDS 9 PRO fishfinder/chartplotter (9" - 1280 x 720 pixel display) with transom mount depth/temp. transducer traditional Active Imaging HD 3-IN-1 200 kHz, 83 kHz CHIRP and SideScan 455/800 kHz c/Active Imaging 3 in 1 | |
| LOWRANCE HDS 9 PRO fishfinder/chartplotter (9" - 1280 x 720 pixel display) without transducer | |
| LOWRANCE HDS 10 PRO fishfinder/chartplotter (10" - 1280 x 800 pixel display) with transom mount with depth/temp. da poppa Active Imaging HD 3-IN-1 200 kHz traditional transducer, 83 kHz CHIRP and SideScan 455/800 kHz c/Active Imaging 3 in 1 | |
| LOWRANCE HDS 10 PRO fishfinder/chartplotter (10" - 1280 x 800 pixel display) without transducer | |
| LOWRANCE HDS 12 PRO fishfinder/chartplotter (12" - 1280 x 800 pixel display) with transom mount depth/temp. Active Imaging HD 3-IN-1 200 kHz traditional transducer, 83 kHz CHIRP and SideScan 455/800 kHz c/Active Imaging 3 in 1 | |
| LOWRANCE HDS 12 PRO fishfinder/chartplotter (12" - 1280 x 800 pixel display) without transducer |
|
| Spare parts |
|---|---|
| Power cable for HDS PRO - LIVE - CARBON (all models) | |
| Metal mounting bracket for HDS-9 PRO - LIVE | |
| Metal mounting bracket for HDS-10 PRO | |
| Metal mounting bracket for HDS-12 PRO- LIVE | |
| Protective cover for HDS-9 PRO - LIVE | |
| Protective cover for HDS-10 PRO - LIVE | |
| Protective cover for HDS-12 PRO - LIVE | |
| Transom mount Active Imaging™ 3-in-1 transducer depth/temp. High Resolution (CHIRP/Side/down) supplied as standard on GN622884 / GN622886 / GN622888 |
