STAINLESS STEEL AISI 316 FUEL AND WATER LEVEL SENDER

  • water level senders
  • fuel level sender
  • fuel level sender
  • gasoline level sender
  • level sender
  • gasoline level sender
  • engine control instruments
  • water level gauge
  • water levels
  • water level senders
  • fuel level sender
  • fuel level sender
  • gasoline level sender
  • level sender
  • gasoline level sender
  • engine control instruments
  • water level gauge
  • water levels
298050_1

In compliance with safety standards of 94/25/CE. Rule reference ISO 8864

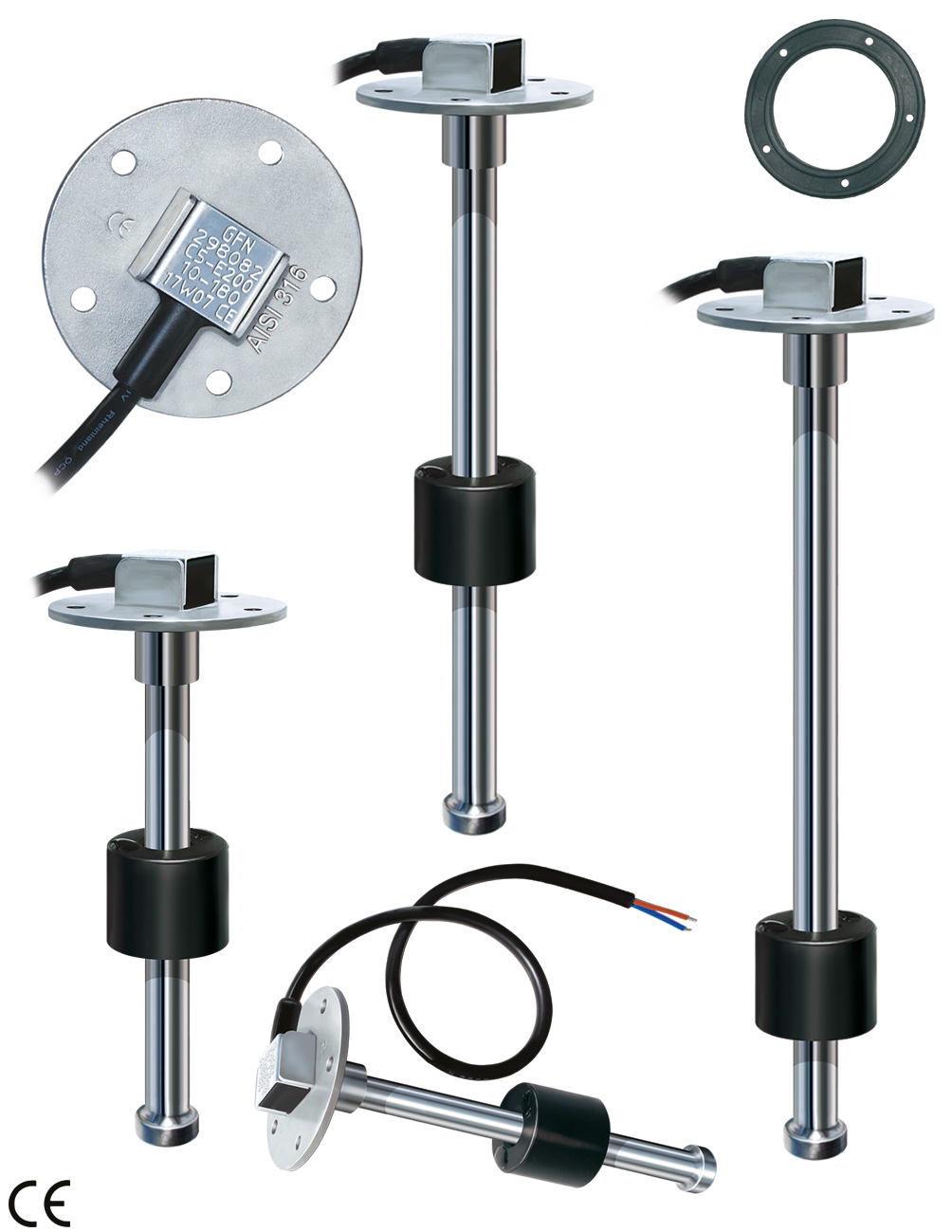

The STAINLESS STEEL AISI 316 level senders show the level of fuels and water in the tanks of leisure boats; they have 5-hole flanges and they are supplied complete with rubber gasket.

The 240-33 OHM YAZAKI sensors are suggested for all instruments with frequency 240-33 OHM: YAZAKI - AQUA METER - TELEFLEX - GFN.

The 10-180 OHM VDO sensors are suggested for all instruments with frequency 10-180 OHM: VDO - FARIA - GFN.

Technical features

Voltage

12 V

FREQUENCY 240 - 33 OHM YAZAKI

FREQUENCY 10 - 180 OHM VDO

Length

mm

Length

mm

Length

mm

Length

mm

150

298050

500

298063

150

298080

450

298091

170

298051

550

298065

170

298081

500

298092

200

298052

600

298067

200

298082

550

298093

225

298053

650

298068

225

298083

600

298094

250

298055

700

298070

250

298084

650

298095

280

298056

750

298071

280

298085

700

298097

300

298057

800

298073

300

298086

750

298098

350

298059

850

298074

350

298088

800

298099

400

298060

900

298075

400

298090

850

298100

450

298061

Availability:
  • Available
  • Not available
  • Stock not managed
