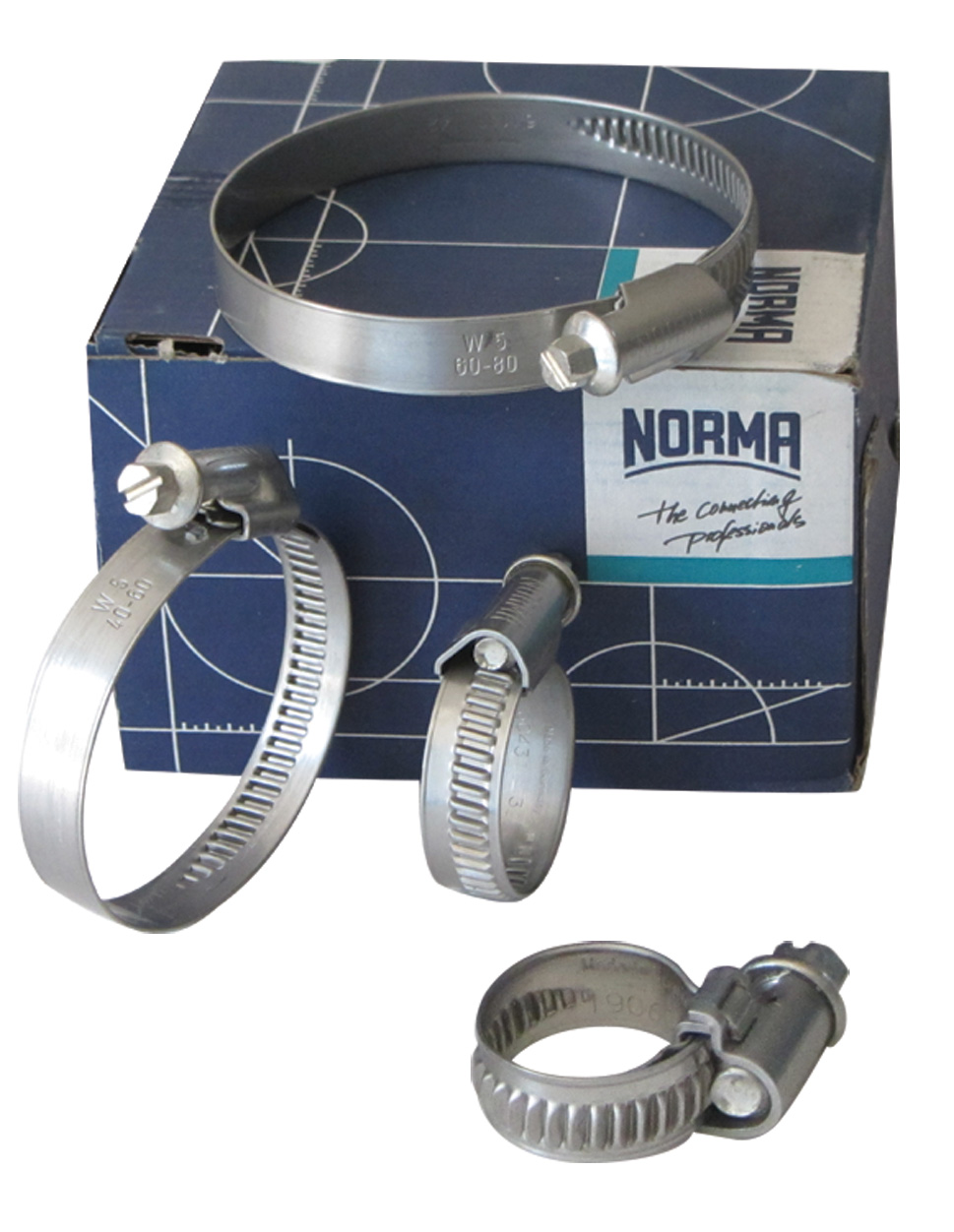

STAINLESS STEEL AISI 316 W5 HOSE CLAMP
- cable ties
- wiring cable ties
STAINLESS STEEL AISI 316 W5, hose clamp, acids resistant, has been properly studied for the most severe marine working conditions. The coupling of band with screw has been thought that possible defections of the circular clamp, during tightening, are minimized. The screw can be tightened with either a screwdriver or a wrench, both using hand and automatic tools. The hose clamp complies with all European and American standards.
| | Tightening min - max mm | Band width mm | pc |
|---|---|---|---|
| 8 - 16 | 9 | 50 | |
| 12 - 20 | 9 | 50 | |
| 16 - 27 | 12 | 50 | |
| 20 - 32 | 12 | 50 | |
| 25 - 40 | 12 | 50 | |
| 30 - 45 | 12 | 50 | |
| 35 - 50 | 12 | 50 | |
| 40 - 60 | 12 | 50 | |
| 50 - 70 | 12 | 50 | |
| 60 - 80 | 12 | 50 | |
| 70 - 90 | 12 | 50 | |
| 80 - 100 | 12 | 50 | |
| 90 - 110 | 12 | 50 | |
| 100 - 120 | 12 | 10 | |
| 110 - 130 | 12 | 10 | |
| 120 - 130 | 12 | 10 | |
| 130 - 150 | 12 | 10 | |
| 140 - 160 | 12 | 10 |
