STAINLESS STEEL FIXED TANK
- fixed fuel tanks
- s/s fuel tanks
STAINLESS STEEL horizontal fuel tanks, radiated construction with porthole. They can be manufactured even in vertical. The capacity is referred and calculated without considering the radius.
Thicknesses employed:
- 10/10 up to 100 lt.
- 12/10 up to 200 lt.
- 15/10 up to 400 lt.
Max thickness employed 20/10.
ON REQUEST WE CAN SUPPLY CUSTOM-MADE TANKS.

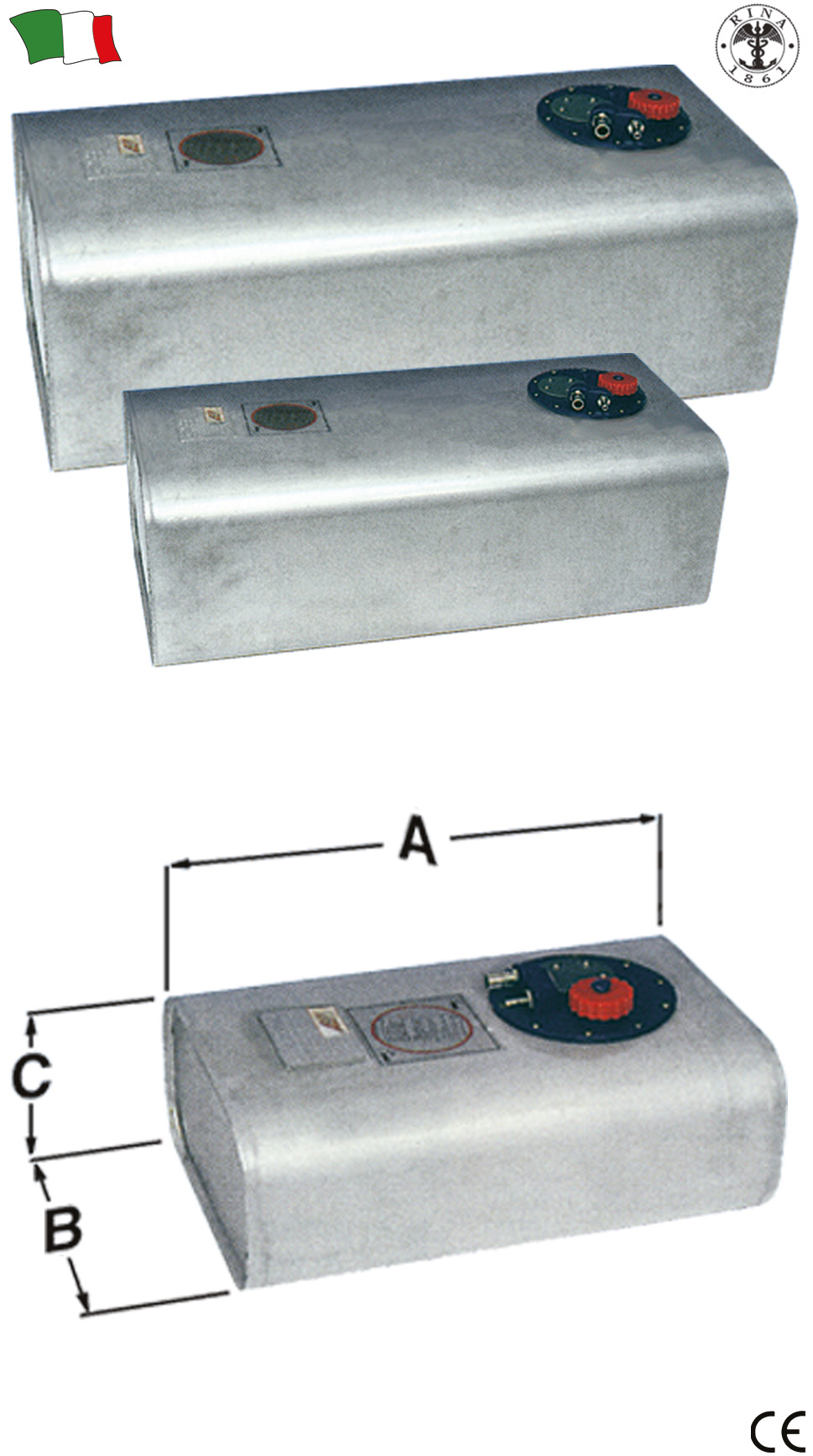

| | Capacity lt | A - Lunghezza mm | B - Width mm | C - Height mm |
|---|---|---|---|---|
| 35 | 500 | 350 | 200+30 | |
| 49 | 900 | 320 | 170+30 | |
| 49 | 700 | 350 | 200+30 | |
| 49 | 500 | 350 | 280+30 | |
| 56 | 500 | 400 | 280+30 | |
| 63 | 900 | 350 | 200+30 | |
| 69 | 700 | 350 | 280+30 | |
| 70 | 1300 | 320 | 170+30 | |
| 77 | 1100 | 350 | 200+30 | |
| 78 | 700 | 400 | 280+30 | |
| 81 | 1500 | 320 | 170+30 | |
| 89 | 900 | 350 | 280+30 | |
| 91 | 1300 | 350 | 200+30 | |
| 100 | 900 | 400 | 280+30 | |
| 105 | 1500 | 350 | 200+30 | |
| 107 | 1100 | 350 | 280+30 | |
| 123 | 1100 | 400 | 280+30 | |
| 127 | 1300 | 350 | 280+30 | |
| 145 | 1300 | 400 | 280+30 | |
| 147 | 1500 | 350 | 280+30 |
