GARMIN GPSMAP8400XSV MULTI-TOUCH COMBONEW

SYGMAP8410XSV

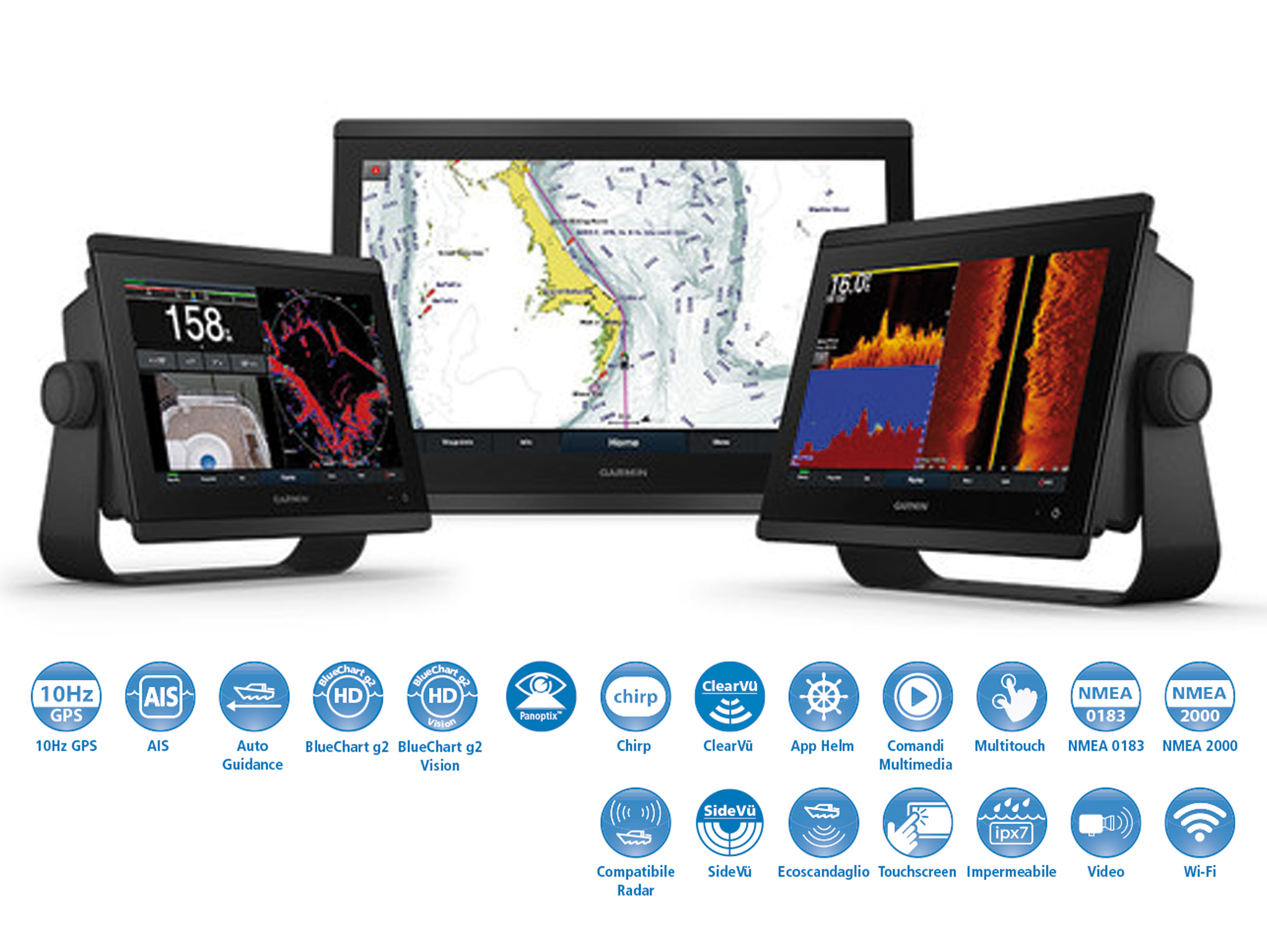

GPSMAP 8400XSV cartographic Fishfinder/Chartplotter (Multi-Touch colour display, high brightness), 10 Hz high sensitivity internal antenna which updates position and heading 10 times per second, worlwide basemap, tide tables, sun and moon information, wireless connectivity via Wi-Fi® e ANT™, 4 network inputs, NMEA 2000, HDMI imput and USB for a total intergration, double slot for micro SD cards. Xsv combined models offer the most advanced fishfinder functions without the necessity of installing additional fishfinder modules, thanks to double channel CHIRP 1 kW integrated module which allows a simultaneous scan on different frequencies (50/77/200 KHz) and the innovative ClearVü and SideVü™ for the visualization of objects, structures with HD resolution. Complete with mounting bracket, power cable, NMEA 2000 cable, protective cover, Italian and multilingual software.

GPS/GLONASS/Galileo 10 Hz integrated receiver.

Supports Garmin Marine Network, Radar Garmin, – Black Box GSD and GCV, Panoptix transducers, videocameras, AIS, DSC, GRID, Quatix, Garmin Helm and compatible Fusion audio systems.

Optional Garmin BlueChart G3 or G3 Vision MicroSD/SD cartography.

Code

Description

SYGMAP8410XSV

GARMIN GPSMAP 8410XSV Fishfinder/Chartplotter multi-touch (10" WSVGA display 1920x1200 pixel) with integrated CHIRP module, display only

SYGMAP8412XSV

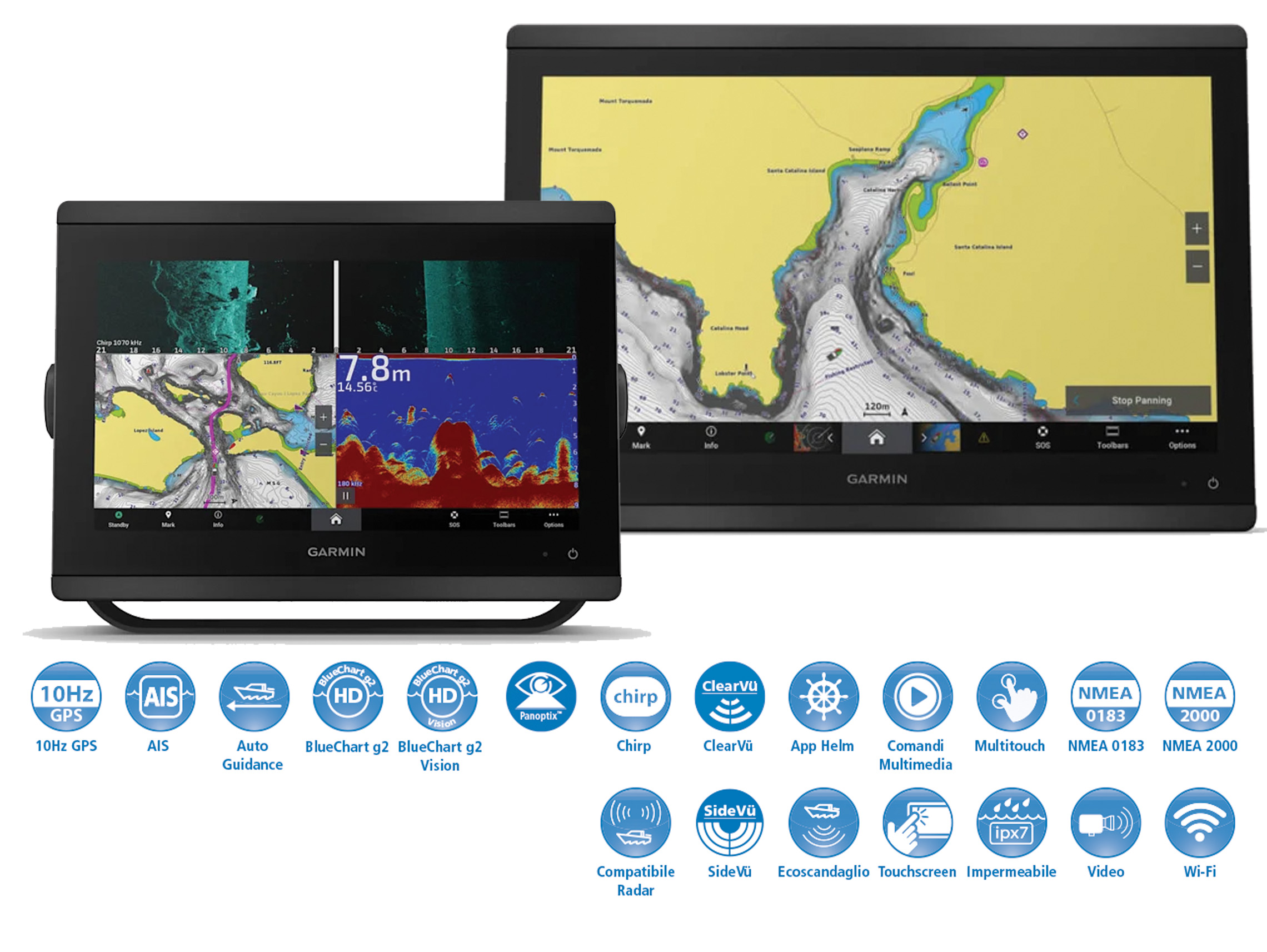

GARMIN GPSMAP 8412XSV Fishfinder/Chartplotter multi-touch (12" WSVGA display 1920x1200 pixel) with integrated CHIRP module, display only

SYGMAP8416XSV

GARMIN GPSMAP 8416XSV Fishfinder/Chartplotter multi-touch (16" WSVGA display 1920x1080 pixel) with integrated CHIRP module, display only

Spare parts

SYG11425-13

Power cable for GPSMAP 8400 series

SYG12798

Bail mounting bracket for GPSMAP 8410 - 8410xsv

SYG12798-01

Bail mounting bracket for GPSMAP 8412 - 8412xsv

SYG12798-02

Bail mounting bracket for GPSMAP 8416 - 8416xsv

SYG12799

Protective cover for GPSMAP 8410 - 8410xsv

SYG12799-01

Protective cover for GPSMAP 8412 - 8412xsv

SYG12799-02

Protective cover for GPSMAP 8416 - 8416xsv
