HYDRAULIC STEERING SYSTEM GF150R FOR OUTBOARD UP TO 150 HP

  • steering systems and cables
  • cables and steering systems
  • hydraulic steering systems and accessories
128123

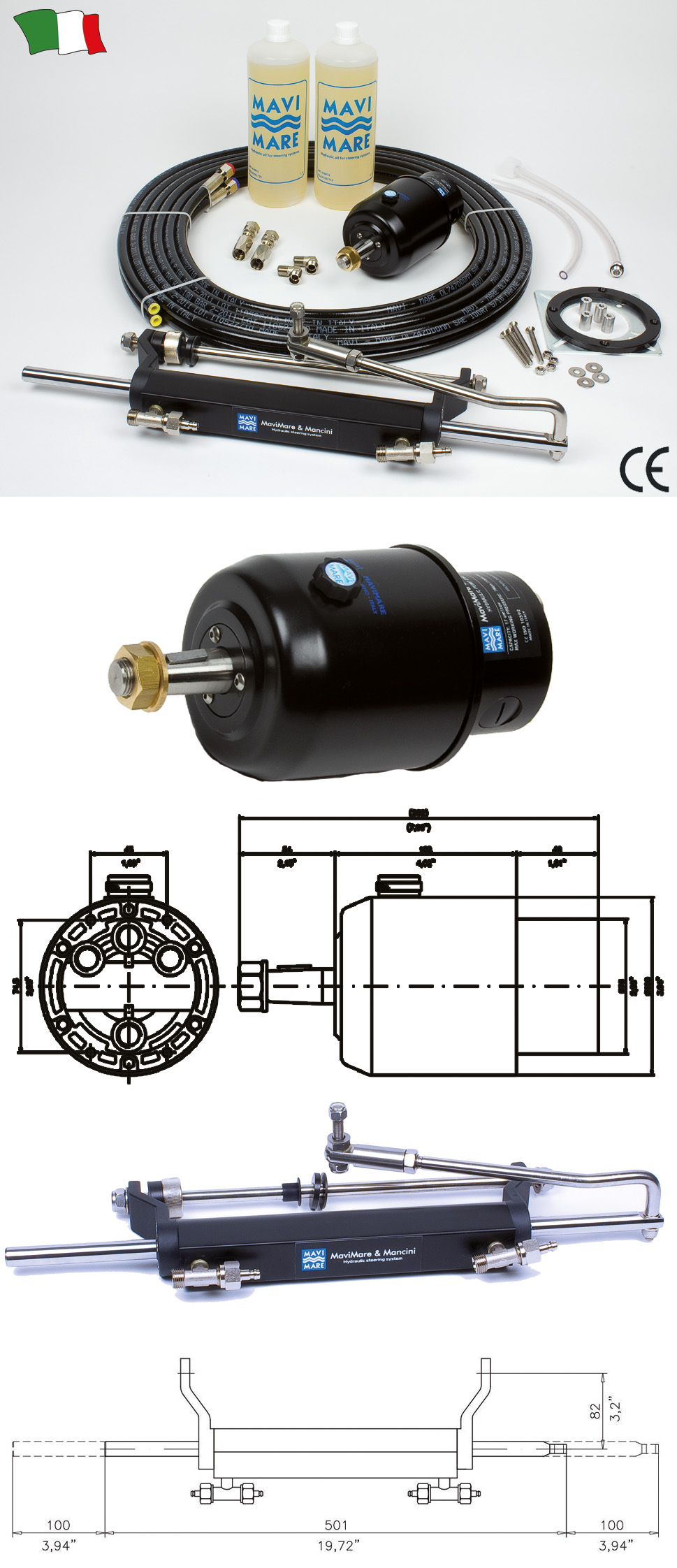

COMPLETE KIT GF 150R

128123

Complete Kit GF150R composed of:

• Volumetric pump code 128102

• Hydraulic cylinder code 128124

• Hydraulic oil 2 liters code 439282

• Fitting kit

Lock-to-lock steering wheel turns: 4,9

Hydraulic flexible hoses and steering wheel not included.

For use with KIT OB fitted flexible hoses:

see code 128040 - 128052

GM0-MRA PISTONS VOLUMETRIC PUMP

Technical features

Mounting

front

Volume

17 cm³

Pistons number

7

Max pressure

70 bar

Weight

2,8 Kg

128102

Volumetric pistons pump for frontal mounting

GM0-MRA.

All the parts of the pump are made of high quality materials which features match the functions of each component:

• The shaft is made of STAINLESS STEEL AISI 316

• The rotor is made of STAINLESS STEEL

• The valve is made of brass

The pump is equipped with a non-return and pressure relief valve

• Equipped with kit for semi-recessed mounting possibility.

HYDRAULIC CYLINDER MC150R FOR OUTBOARD ENGINES

Technical features

Max HP

150 HP

Volume

70 cm³

Stroke

200 mm

Weight

4 Kg

128124

Cylinder MC 150R with frontal mounting and tiller arm; suitable for outboard engines up to 150 hp maximum power. Chromed brass heads and STAINLESS STEEL AISI 316 shaft.

For use with KIT OB fitted flexible hoses:

see code 128040 - 128052

Availability:
  • Available
  • Not available
  • Stock not managed
