ULTRAFLEX HYDRAULIC STEERING SYSTEM FOR OUTBOARD ENGINES UP TO 300 HP

  • steering systems and cables
  • cables and steering systems
  • hydraulic steering systems and accessories
127953

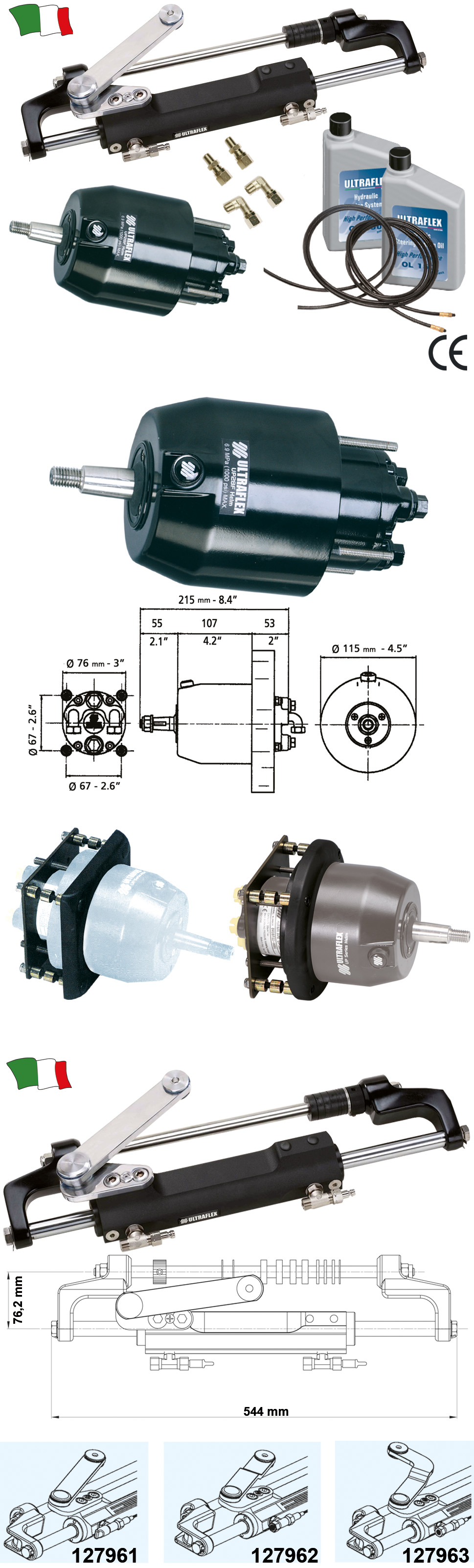

KIT NAUTECH

Complete kit NAUTECH 1 composed of:
• UP25 F pump code 127956• Front mount hydraulic cylinder code 127961
• Hydraulic oil 2 lt code 439282
• Fitting kit
Three types available:
• Code 127953 the kit does not include flexible hoses and steeering wheel.
To use with flexible preassembled hoses KIT OB: see codes 128040 - 128052.
• Code 127953/6 the kit includes 2 flexible hoses of 6 mts preassembled at both ends and two connectors to mount at the required lenght, steering wheel not included.
• Code 127953/9 the kit includes 2 flexible hoses of 9 mts preassembled at both ends and two connectors to mount at the required lenght, steering wheel not included.

Kit NAUTECH

without hoses

Kit NAUTECH

with OB/M60

6 mts hose length

Kit NAUTECH

with OB/M90

9 mts hose length

127953

127953/6

127953/9

UP25 F - UP28 F-UP33 F FRONTAL MOUNTING PUMP

These pumps exceed all 94/25 CE and ISO 10592 standard requirements.
They are interchangeable with the corresponding Hydraflex and Teleflex Seastar.
• Available with three different displacement sizes
• Compact design
• Ball bearing piston race
• Equipped with lock valve for positive rudder lock
• Integral relief valve for over pressure adjusted at 70 bar 1000 PSI
• 3/4" tapered stainless steel shaft
• Cast iron rotor for greater durability
• Frontal oil filling
• Fitted for 1/4 NPT fitting for 3/8" hose
• Complete with elbow fittings
• Requires assembled flexible cable KIT OB: from item 128040 to 128052.

Technical features

Mounting

front

Mounting

semi-recesses with square bracket X64 code 127954 or round X57 code 127955

Maximum steering wheel diameter

710 mm - 28"

Weight

5 Kg

Model

Load capacity

cc

Pistons number

127956

UP25F

25

5

127950

UP28F

28

7

127951

UP33F

33

7

PUMP MOUNTING KIT

127954

X64 square flange kit for intermediate dashboard mounting of Ultraflex UP25F - UP28F - UP33F - UP39F - UP45F pumps.

127955

X57 round flange kit for intermediate dashboard mounting of Ultraflex UP25F - UP28F - UP33F - UP39F - UP45F pumps.

HYDRAULIC CYLINDERS UC128-OBF FOR OUTBOARD ENGINES

Ultraflex hydraulic steering systems components are marked CE in compliance with european 94/25 and ISO 10592 standards. Manufactured with the most recent technologies and with completely inoxidable materials, complete with elbow fittings 1/4 NPT for 3/8" hose.
Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa.
It uses flexible pre-assembled hoses KIT OB: see codes 128040 - 128052.

The cylinder UC128-OBF is available in 3 versions according to the engine:

Technical features

Max HP

300 HP

Volume

120 cc - 7.3 cu in

Thrust

450 Kg

Internal diameter

35 mm

Stroke

185 mm

Fittings

3/8" (9,5 mm)

127961

Cylinder UC128-OBF/1.

127962

Cylinder UC128-OBF/2.

127963

Cylinder UC128-OBF/3.
