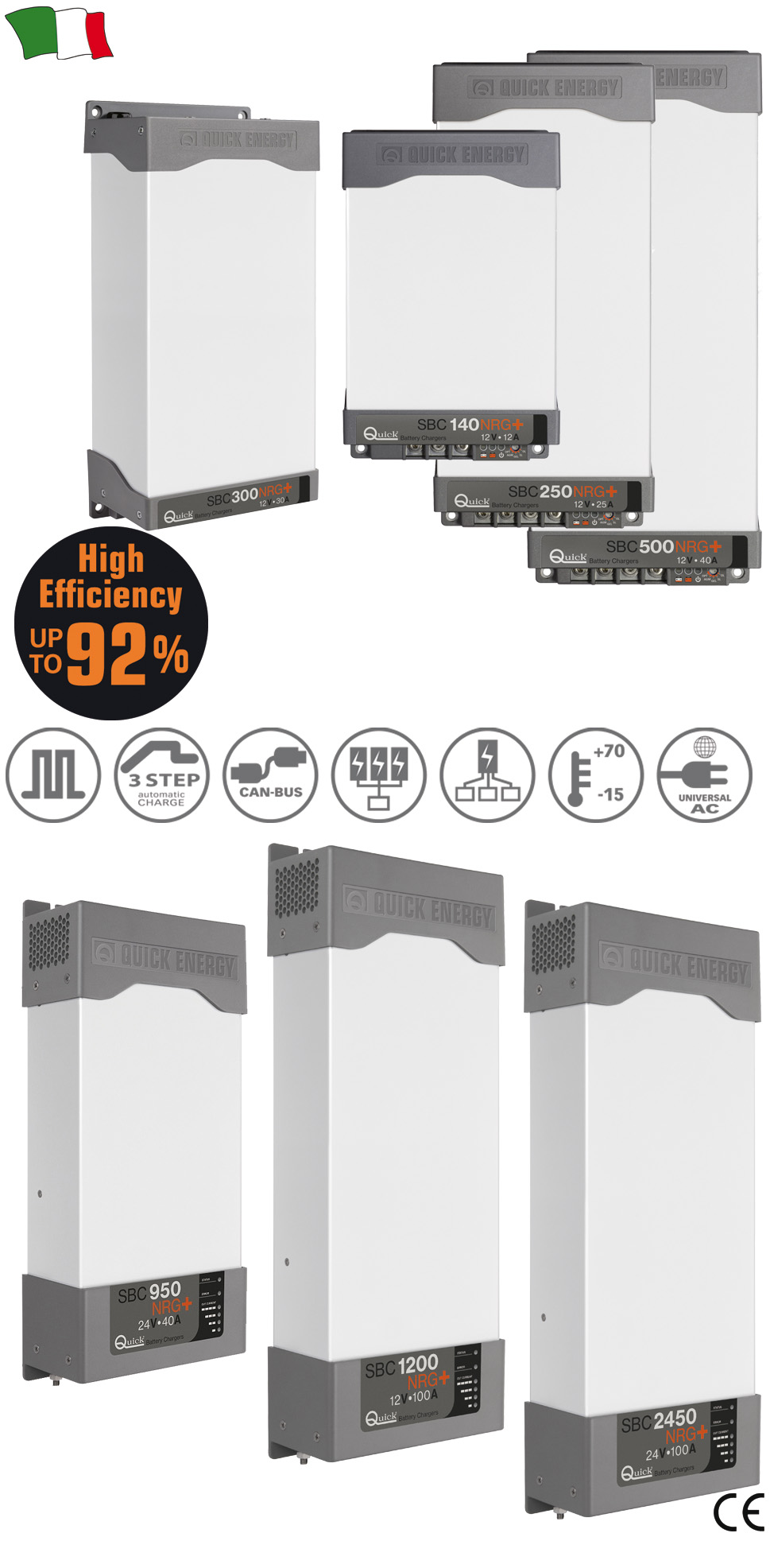

SBC NRG+FR BATTERY CHARGER

battery charger

HIGH EFFICIENCY MORE THAN 92%

SBC NRG+FR battery charger, with higher efficiency in comparison with the market standards, innovative design, well-advanced technology which means reduced consumption, less heat generation and limited acoustic noise.
The high performances of SBC NRG+FR allow a fast and safe battery charging. Other important advantages that the SBC NRG battery chargers offer are:
• Three stages IUoU battery charging.
• Multiple outputs in order to charge more groups of batteries (electronic mosfet charge separator inside).
• Differentiated charging for open or sealed liquid electrolite, GEL or AGM batteries.
• The possibility of using the battery charger as a power supply without batteries.
• Integrated output fuses inside the battery charger. • Capacity of supplying full power with low AC network supply voltage (Full Range Mini and Medium). • Low residual fluctuation on output. • Universal AC supply input (mod. 1450/1950/2450 SBC NRG+FR HR excluded). • Compatible with any generator. • Can operate in a wide range of ambient temperatures. • Variable speed of the cooling fan. • User's CAN BUS interface for data transfer (except mod.SBC 140/250/300/500 NGR+ FR). • Reduced power mode automatic and manual. • CAN BUS interface for data transfer. • Possibility to connect up to three battery chargers of the same model in parallel, by means of digital control, for current sharing (only for mod. SBC 1100/1200/1450/1950/2450 NRG+ HR). • Protection against overheating of the batteries (with optional sensors). • Short circuit, overloading, output overvoltage and overheating protection.

SBC NRG+ FR Mini / Low

	Model	Volts	Max current output Amp	No. outputs	Max power consumption (230 Vac) Amp	Supply voltage Vac	Frequency Hz	Dimensions mm	Weight kg
628954	SBC 140 NRG+ FR	12	12	2	0,9	83 ÷ 264	45 ÷ 66	187 x 114 x 71	1,1
628955	SBC 250 NRG+ FR	12	25	3	1,8	83 ÷ 264	45 ÷ 66	252 x 114 x 71	1,6
628960	SBC 300 NRG+ FR	12	30	3	2,2	83 ÷ 264	45 ÷ 66	252 x 114 x 71	1,6
628965	SBC 500 NRG+ FR	12	40	3	2,8	83 ÷ 264	45 ÷ 66	276 x 114 x 71	1,8

SBC NRG+ FR Medium

	Model	Volts	Max current output Amp	No. outputs	Max power consumption (230 Vac) Amp	Supply voltage Vac	Frequency Hz	Dimensions mm	Weight kg
628966	SBC 700 NRG+ FR	12	60	3	3,9	83 ÷ 264	45 ÷ 66	391 x 170 x 82	3,1
628975	SBC 950 NRG+ FR	24	40	3	5,1	83 ÷ 264	45 ÷ 66	391 x 170 x 82	3,1

SBC NRG+ FR HI Power

	Model	Volts	Max current output Amp	No. outputs	Max power consumption (230 Vac) Amp	Supply voltage Vac	Frequency Hz	Dimensions mm	Weight kg
628968	SBC 1100 NRG+ FR	12	80	3	5,4	83 ÷ 264	45 ÷ 66	481 x 170 x 82	4,2
628970	SBC 1200 NRG+ FR	12	100	3	6,5	83 ÷ 264	45 ÷ 66	481 x 170 x 82	4,2
628977	SBC 1450 NRG+ HR	24	60	3	7,5	161 ÷ 264	45 ÷ 66	481 x 170 x 82	4,2
628978	SBC 1950 NRG+ HR	24	80	3	10,1	161 ÷ 264	45 ÷ 66	481 x 170 x 82	4,2
628979	SBC 2450 NRG+ HR	24	100	3	12,5	161 ÷ 264	45 ÷ 66	481 x 170 x 82	4,2
