DEMOUNTABLE SUBMERSIBLE BILGE PUMPNEW

bilge pumps
seaflo
submersible electric pumps
Electric centrifugal submersible pumps

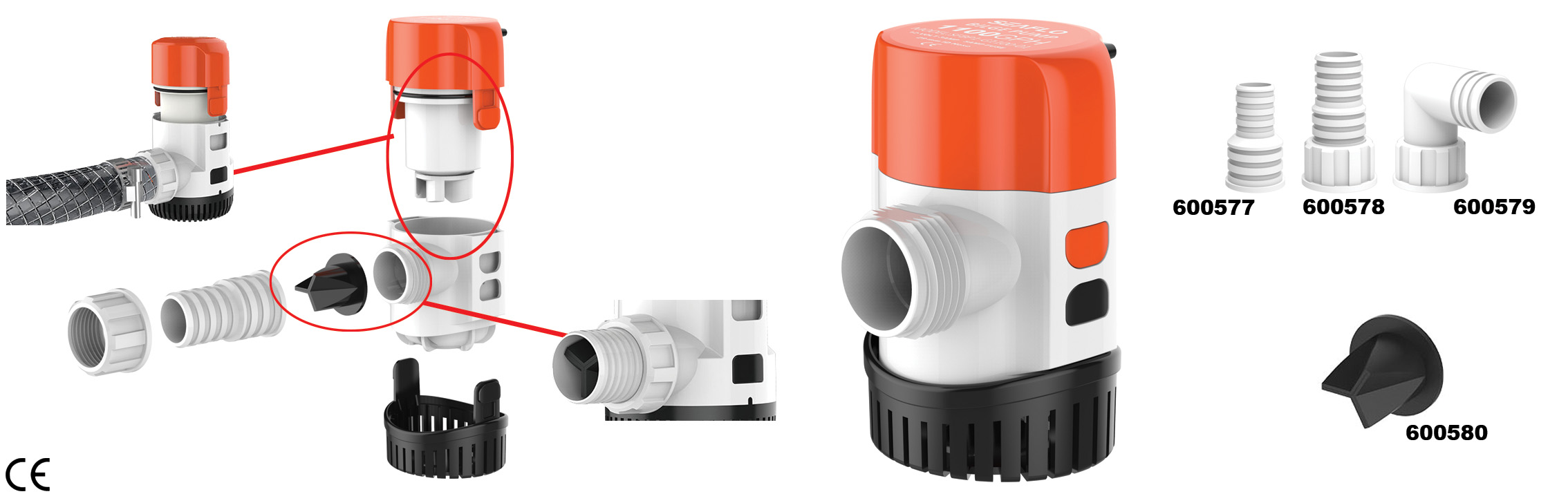

Submersible bilge pump with non-return valve, new design with quick-connect joint which allows to replace a/o remove the motor for cleaning operations without disconnecting the base or plumbing when replacing the pump. Produced with a more robust motor and bigger impeller allow to outperform the pumps actually present in the market.
CE – RoHS Certified in compliance with ISO 8846/8849 directive.

600 - 800 - 1100 GPH

	Model	Volts	Max flow rate lt/min	Consumption Amp	Fuse max Amp	Max head m	Height mm	base Ø mm	Ø hose fitting inches - mm
600571	600	12	37	2,5	4	2,5	110	70	from 1" to 1" 1/8 - from 25 to 29
600571/24	600	24	37	1,5	3	2,5	110	70	from 1" to 1" 1/8 - from 25 to 29
600572	800	12	50	3,5	6	3	110	70	from 1" to 1" 1/8 - from 25 to 29
600572/24	800	24	50	2,0	4	3	110	70	from 1" to 1" 1/8 - from 25 to 29
600573	1100	12	70	4,0	8	4	110	70	from 1" to 1" 1/8 - from 25 to 29
600574	1100	24	70	2,5	5	4	110	70	from 1" to 1" 1/8 - from 25 to 29

1500 - 2000 GPH

	Model	Volts	Max flow rate lt/min	Consumption Amp	Fuse max Amp	Max head m	Height mm	base Ø mm	Ø hose fitting inches - mm
600585	1500	12	94,6	4,5	8	5	140	85	1" 1/8 - 29
600585/24	1500	24	94,6	2,5	5	5	140	85	1" 1/8 - 29
600586	2000	12	126	7,5	15	5,5	140	85	1" 1/8 - 29
600586/24	2000	24	126	4	8	5,5	140	85	1" 1/8 - 29

3000 - 3700 - 4700 GPH

	Model	Volts	Max flow rate lt/min	Consumption Amp	Fuse max Amp	Max head m	Height mm	base Ø mm	Ø hose fitting inches - mm
600589	3000	12	189	12	20	5,5	187	120	1" 1/2 - 40 / 2" - 52
600589/24	3000	24	189	6	10	5,5	187	120	1" 1/2 - 40 / 2" - 52
600590	3700	12	233	14	25	6	187	120	1" 1/2 - 40 / 2" - 52
600590/24	3700	24	233	7	12	6	187	120	1" 1/2 - 40 / 2" - 52
600591	4700	12	296,50	16	25	6,5	187	120	1" 1/2 - 40 / 2" - 52
600591/24	4700	24	296,50	8	14	6,5	187	120	1" 1/2 - 40 / 2" - 52

SPARE CONNECTORS

	Type	Thread inches - mm	For pumps our codes
600577	Straight	from 3/4" to 1" 1/8 - from 19 to 29	from code 600571 to 600574
600578	Straight	from 1" to 1" 1/8 - from 25 to 29	from code 600571 to 600574
600579	90° angle fitting	1" 1/8 - 29	from code 600571 to 600574
600793	Straight	1" 1/8 - 29	from code 600585 to 600586/24
600793/1	Straight	1" 1/2 - 40	from code 600589 to 600591/24
600793/2	Straight	2" - 52	from code 600589 to 600591/24

NON-RETURN VALVE

600580	Spare non-return valve Ø 29 mm for pumps from code 600571 to 600586/24.
600580/1	Spare non-return valve Ø 40 mm for pumps from code 600589 to 600591/24.
600580/2	Spare non-return valve Ø 52 mm for pumps from code 600589 to 600591/24.
